Product Details:
|

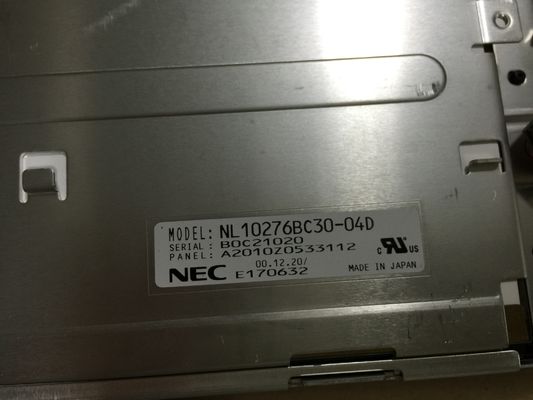

| MODEL NUMBER: | NL10276BC30-04D | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 350CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Information : | Brand | Model | NL10276BC30-04D | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) |
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 308.8(H) × 232.7(V) |
| Outline Dim.(mm) | 350(H) × 265(V) | Depth(mm) | 20.5/21.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Spec : | Weight | 1.56/1.61Kgs (Typ./Max.) | Treatment | Antireflection |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/45/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/40 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
| Color Temperature | - | White Uniformity | 1.30 (Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 300mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-SE20P-HF | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C6B-230A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (150LHS12) | Quantity | 4 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 680V (Typ.) | Current Supply | 3.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 53/67KHz (Min./Max.) | Startup Voltage | 1100/1650V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LNH | |
| JST | BHR-02VS-1 | 1 pcs | 2 pins | 4.0 mm | BLL-2PINS-NH | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
