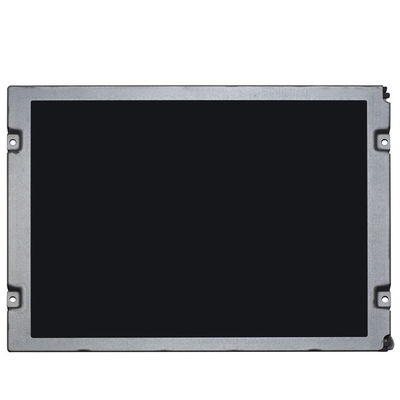

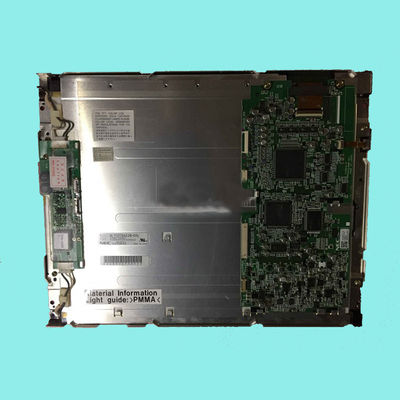

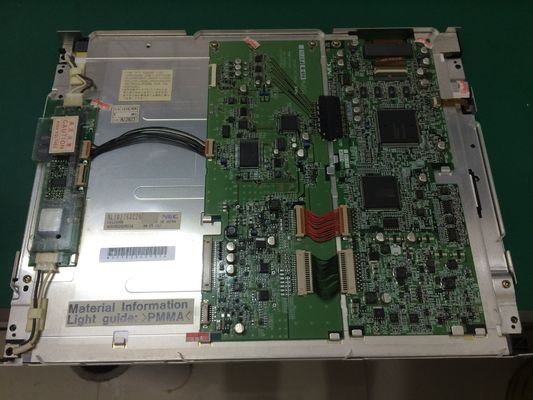

Product Details:
|

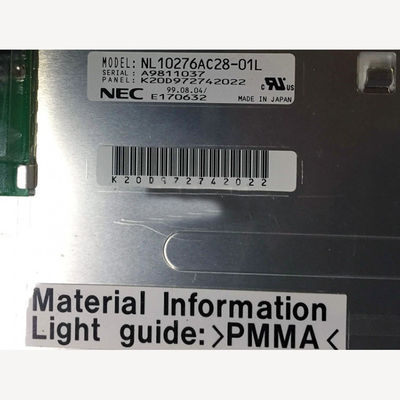

| MODEL NUMBER: | NL10276AC28-01L | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 200CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NL10276AC28-01L | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C | 2.0G (19.6 m/s²) |
| Panel Size : | 14.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.093×0.279 mm | 0.279×0.279 mm [91PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 285.696×214.272 mm | 290.4×219.0 mm | 330×255 mm | 19.8/20.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | Normal bezel | |
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.23/1.35Kgs (Typ./Max.) | Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 150:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 50/50/20/35 (Typ.)(CR≥10) | - | 11 (Typ.)(Tr) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Full color | - |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 630mA (Typ.) | 12.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Analog RGB | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| AMP | 1-353119-4 | 1 pcs | 1.25 mm | 14 pins | ||
| HRS | DF14A-25P-1.25H | 1 pcs | 1.25 mm | 25 pins | ||
| JAE | IL-Z-8PL-SMTY | 1 pcs | 1.25 mm | 8 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 2 pcs | - | Replaceable (141LHS08) | |
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | With Inverter | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | IL-Z-11PL1-SMTY | 1 pcs | 1.25 mm | 11 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.70/0.90A (Typ./Max.) | 12.0V (Typ.) | |||||
