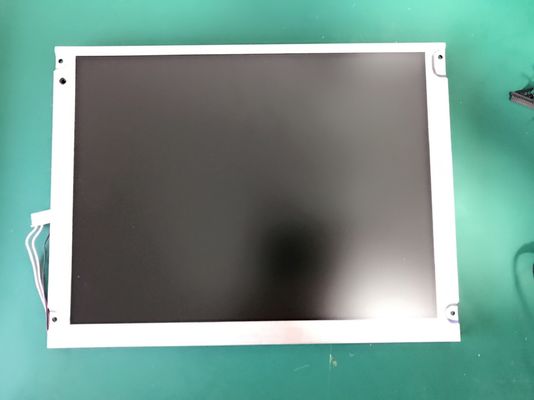

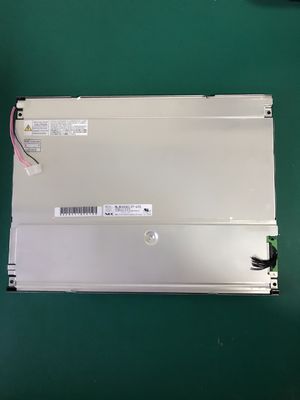

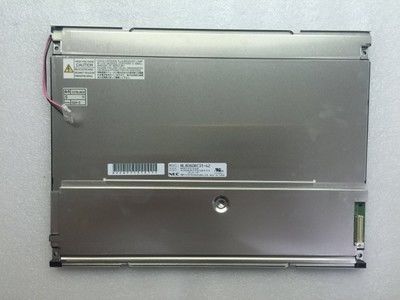

Product Details:
|

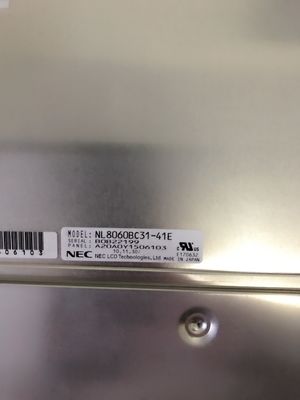

| MODEL NUMBER: | NL8060BC31-41E | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL8060BC31-41E | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 80/80/80/60 (Typ.)(CR≥10) | 6/19 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Panel Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.3075×0.3075 [82PPI] | 0.1025×0.3075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 246(H) × 184.5(V) | 249.0(H) × 187.5(V) | 280(H) × 210(V) | 11.0±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Φ3.5) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| - | - | Antiglare | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 2 pcs | Straight | - | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 560V (Typ.) | 2.0/5.0/5.5mA (Min./Typ./Max.) | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 58/63/68KHz (Min./Typ./Max.) | 1380/1560V (Min.)(Ta=+25/-20℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 350/530mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | ||
