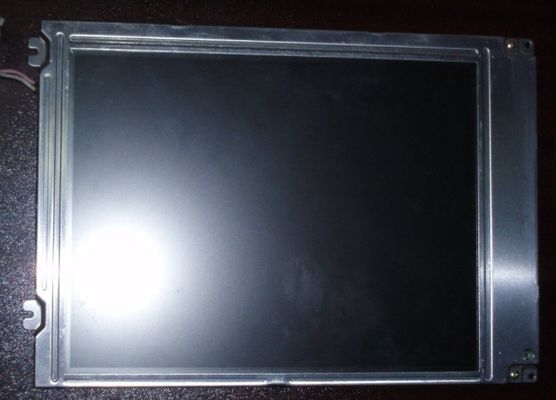

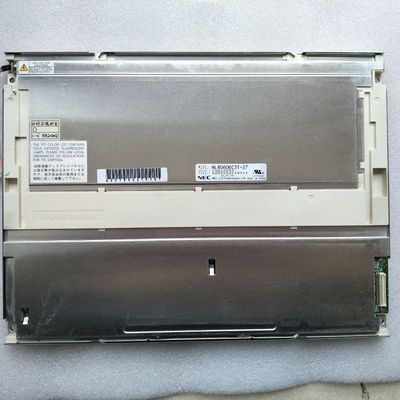

Product Details:
|
| MODEL NUMBER: | NL8060BC31-27 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Information : | Brand | Model | NL8060BC31-27 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.1" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | - | Vibration | 2.0G (19.6 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 280(H) × 210(V) | Depth(mm) | 13.0/13.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Spec : | Weight | 740/770g (Typ./Max.) | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/45/55 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 8/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.) | Current Supply | 210/140mA (Typ.)(3.3/5.0V) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VDL≤0.3VCC; 0.7VCC≤VDH≤VCC | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9C-41P-1V | 1 pcs | 41 pins | 1.0 mm | DRGB-41P1C6B-010G | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (121LHS18) | Quantity | 2 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 570V (Typ.) | Current Supply | 2.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 58/63/68KHz (Min./Typ./Max.) | Startup Voltage | 970/1410V (Min.)(Ta=+25/-10℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-04VS-1 | 1 pcs | 4 pins | 4.0 mm | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
