Product Details:
|

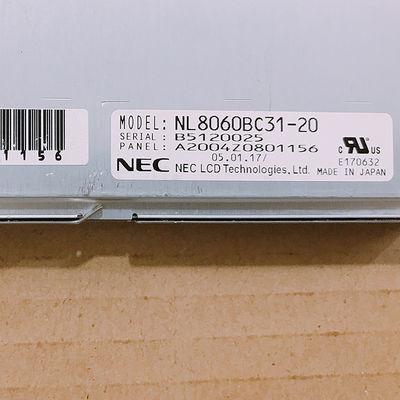

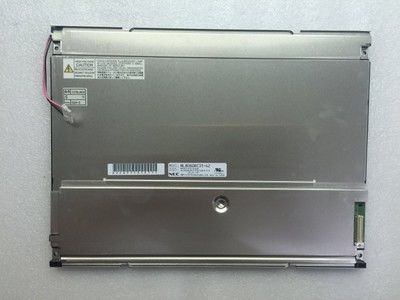

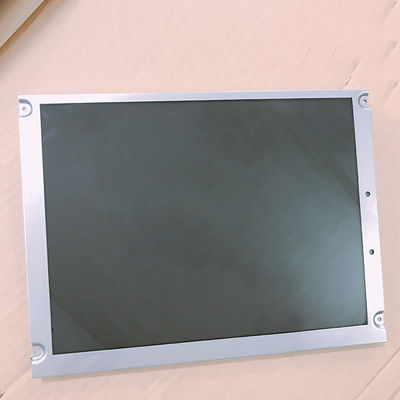

| MODEL NUMBER: | NL8060BC31-20 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | NL8060BC31-20 | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 55 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | - | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dim. | 280×210 mm (H×V) | Outline Depth | 13.0/13.7 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features : | Weight | 760/800g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | A-SFT, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 40/40 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.351 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6563K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 54% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 40% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (121LHS16) | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 600V (Typ.) | Current Input | 3.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 58/65/69KHz (Min./Typ./Max.) | Kick-off Voltage | 960/1200V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-LHH | |
| Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VDLL≤0.3VCC; 0.7VCC≤VDLH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.) | Current Input | 400/300mA (Typ.)(3.3/5.0V) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9-41P-1V | 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010G | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
