NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS
NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

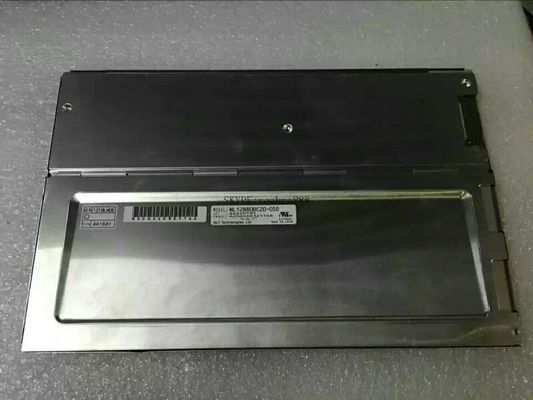

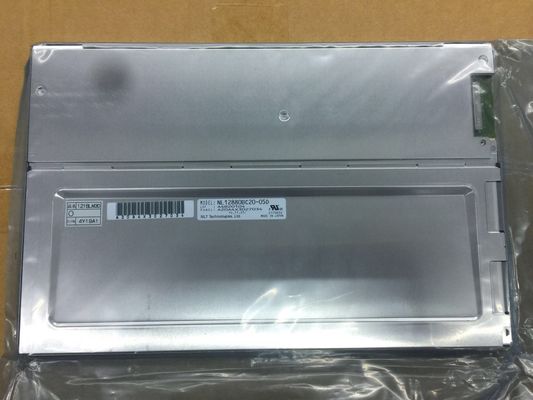

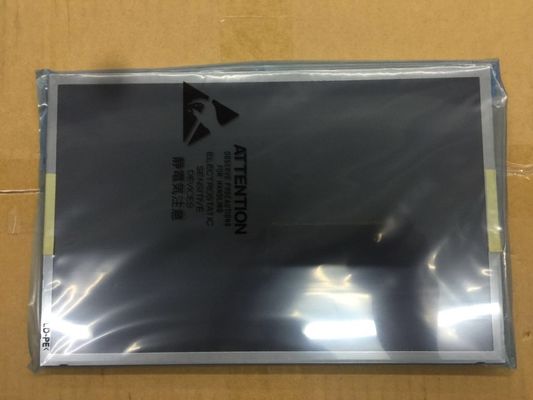

Large Image :  NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL12880BC20-05D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 600PCS
Contact Now

NL12880BC20-05D NLT 12.1INCH 450CD/M2 LCM 1280×800 1280×800RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Description
MODEL NUMBER: NL12880BC20-05D BRAND: NEC
SIZE: 12.1INCH RESOLUTION: 1280×800RGB
BRIGHTNESS: 450CD/M2 Lamp Type: LVDS
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

NEC TFT Display 40% NTSC

,

XGA 85PPI NEC TFT Display

NEC NL12880BC20-05D Application Details

Basic Detail :
Manufacturer

Model Name
NL12880BC20-05D
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
12.1 inch
Designed For

Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
2.0G (19.6 m/s²)
Features :
  •
Remarks :
ColorXcell



NEC NL12880BC20-05D Optical Details

Basic Detail :
Luminance
450 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
10/15 (Typ.)(Tr/Td) ms
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Operating Mode
UA-SFT, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
40%
sRGB
56% coverage
Adobe RGB
42% coverage
DCI-P3
41% coverage
Rec.2020
30% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



NEC NL12880BC20-05D Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×800, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.068×0.204 mm
Pixel Pitch(W×H)
0.204×0.204 mm [124PPI]
Physical Size :
Active Viewing
261.12(W)×163.2(H) mm
Overall Dim.
277.7(W)×180.6(H) mm
Bezel Opening
264.1(W)×166.2(H) mm
Overall Depth
8.7±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:10
Shape Style

Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Detail :
Mass
460/490g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



NEC NL12880BC20-05D Interface Detail

Signal Electrical :
Input Current
500/860mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-SE20P-HFE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-170A



FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
