Product Details:
|
| MODEL NUMBER: | NL10276BC24-20 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 370CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

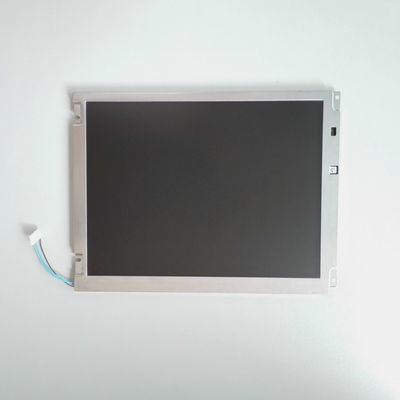

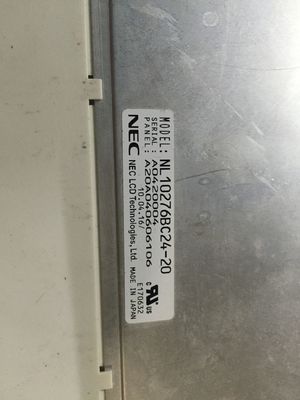

The NL10276BC24-20 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NEC NL10276BC24-20 Application Details
| Basic Information : | Brand | Model | NL10276BC24-20 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.1" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.080×0.240 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.240×0.240 (H×V) [105PPI] | |
| Mechanical Size : | Active Area(mm) | 245.76(H) × 184.32(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 280(H) × 210(V) | Depth(mm) | 13.0/13.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape / Portrait | |
| Mounting : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Spec : | Weight | 750/780g (Typ.Max.) | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 370 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 55/45/70/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 9 o'clock | Response(ms) | 8/30 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 41% | sRGB | 57% coverage |
| Adobe RGB | 43% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 31% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 290/450mA (Typ./Mx.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-SE20P-HFE | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-180A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
