NL12876AC18-03D NLT 10.6INCH 300CD/M2 LCM 1280×768 1280×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Large Image : NL12876AC18-03D NLT 10.6INCH 300CD/M2 LCM 1280×768 1280×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL12876AC18-03D

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	2-3DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	600PCS

Contact Now

NL12876AC18-03D NLT 10.6INCH 300CD/M2 LCM 1280×768 1280×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DIS

Description

MODEL NUMBER:	NL12876AC18-03D	BRAND:	NEC
SIZE:	10.6INCH	RESOLUTION:	1280×768RGB
BRIGHTNESS:	300CD/M2	Lamp Type:	LVDS
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	LVDS NEC TFT Display , VGA 76PPI TFT LCD Panel

NEC NL12876AC18-03D Overview

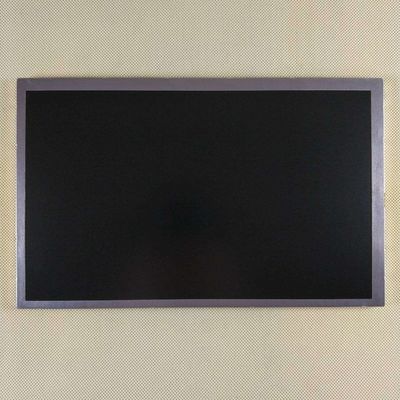

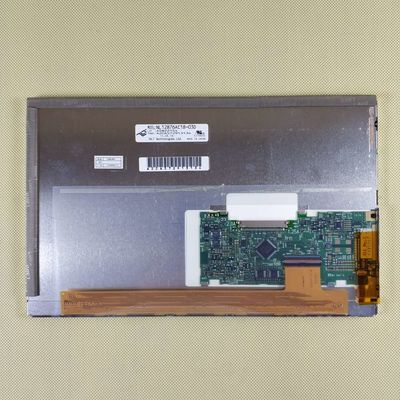

The NL12876AC18-03D is a 10.6 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²

NEC NL12876AC18-03D Application Details

Basic Information :	Brand Model NL12876AC18-03D Type a-Si TFT-LCD , LCM Used For Screen Size 10.6 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration 2.0G (19.6 m/s²)
Typical Features :
Remarks :	ColorXcell

NEC NL12876AC18-03D Mechanical Details

Pixel Features :	Resolution 1280(RGB)×768, WXGA Dot Pitch(mm) 0.060×0.180 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.180×0.180 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 230.4(H) × 138.24(V) Bezel Area(mm) 233.4(H) × 141.3(V) Outline Dim.(mm) 248.8(H) × 155.8(V) Depth(mm) 6.5±0.5
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 15:9 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M2) on left, right bezel
Other Spec :	Weight 270/295g (Typ./Max.) Treatment Antiglare, Hard coating (3H)

NEC NL12876AC18-03D Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Display Mode UA-SFT, Normally Black, Transmissive Best View on Symmetry Response(ms) 13/12 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 262K/16.7M (6-bit / 8-bit) Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamut :	NTSC Ratio 40% sRGB 56% coverage Adobe RGB 42% coverage DCI-P3 42% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

EC NL12876AC18-03D Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 400/700mA (Typ./Max.)
Signal Type :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration HRS DF19L-30P-1H 1.0 mm 30 pins 1 pcs
