Product Details:
|
| MODEL NUMBER: | NLB104SV01L-01 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

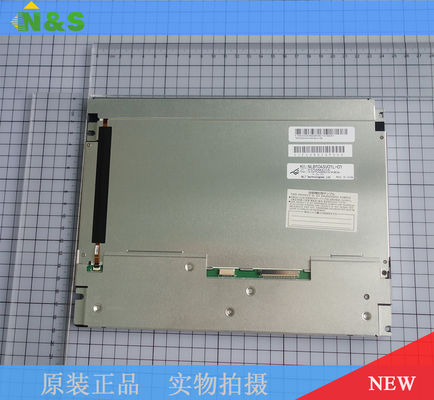

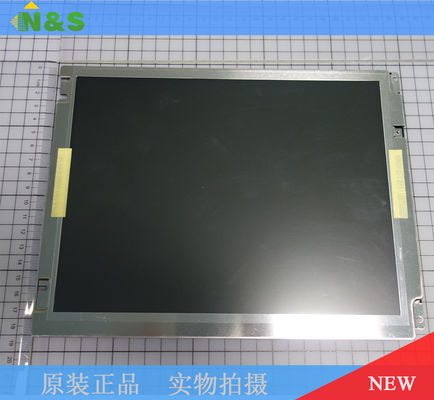

NLT Technologies, Ltd. (hereafter called NLT) NLB104SV01L-01 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NLT NLB104SV01L-01 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NLB104SV01L-01 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Designed For : | ||||
| Specific Features : |
|
|||
| Remarks : | ColorXcell | |||
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | 243×185.1 mm | 10.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 430/465g (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | 6 o'clock | 3/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 43% | 60% | 44% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 44% | 32% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
