Product Details:
|
| MODEL NUMBER: | NL8060BC26-35D | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | LVDS |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

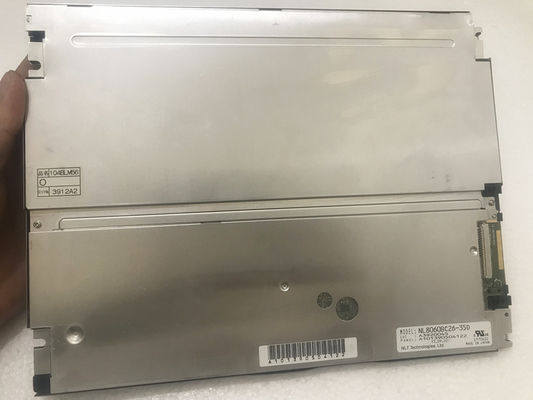

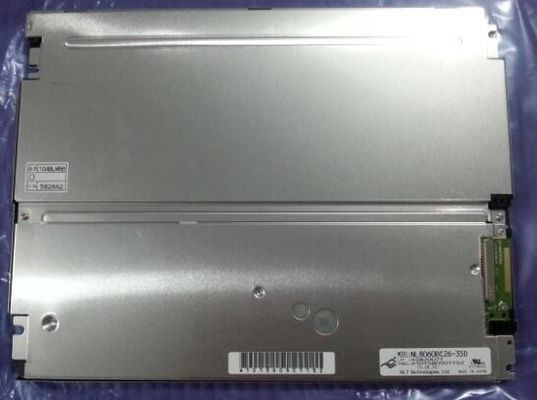

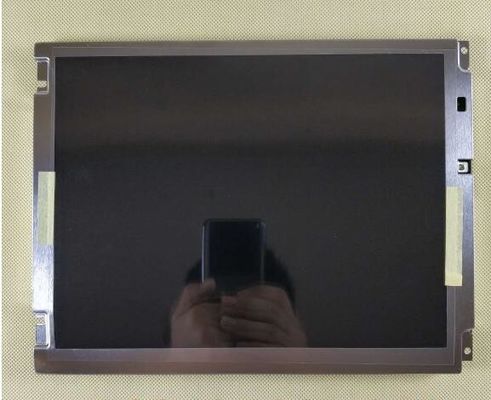

NEC LCD Technologies, Ltd. (hereafter called NEC) NL8060BC26-35D is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, backlight driver optional , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse, 6/8 bit, Matte , ColorXcell. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q4, 2010, Now this model is in production. There are 17 items stock and 15 suppliers of this model on Panelook. We inputted this model's specification on Dec 25 2012 for the first time, and the latest update on Dec 24 2019. If you want to embed NL8060BC26-35D LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's distributor to learn lateast production and specification detail. The NL8060BC26-35D production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
NEC NL8060BC26-35D Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NL8060BC26-35D | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Designed For : | ||||
| Specific Features : |
|
|||
| Remarks : | ColorXcell | |||
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 243×185.1 mm | 10.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 475/500g (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | 6 o'clock | 3/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 57% | 42% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 42% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 250/370mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SE20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-170A | |
