Product Details:
|
| MODEL NUMBER: | NL8060AC26-11 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 190CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

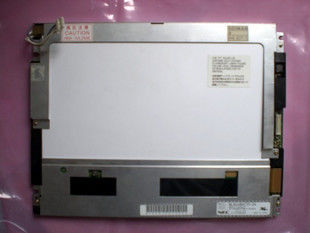

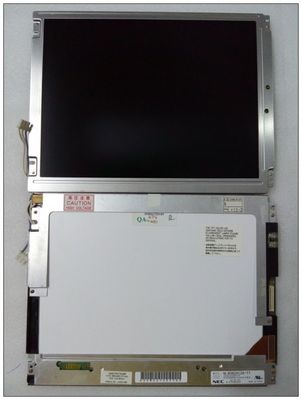

NL8060AC26-11 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
NEC NL8060AC26-11 Application Details
| Basic Detail : | Manufacturer | Model Name | NL8060AC26-11 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×185.1(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm | Overall Depth | 10.5/11.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4 pcs) | |||
| Other Detail : | Mass | 465g (Typ.) | Surface | - |
| Signal Electrical : | Input Current | 310/240mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤5.25V | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9-41P-1V | 1 pcs | 1.0 mm | 41 pins | DRGB-41P1C6B-030A | |
| Basic Information : | Luminance | 190 cd/m² (Typ.) | Contrast Ratio | 150 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 40 (Max.)(Tr) (ms) | |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K (6-bit) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
