NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

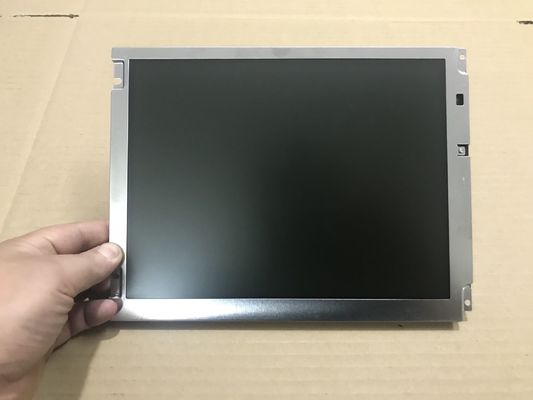

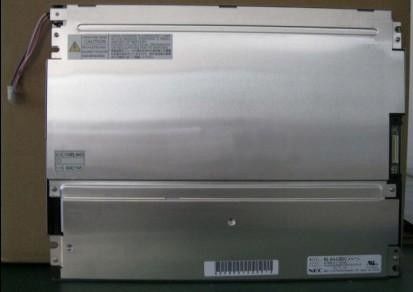

Large Image :  NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448BC33-71D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 500PCS
Contact Now

NL6448BC33-71D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: NL6448BC33-71D BRAND: NEC
SIZE: 10.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 450CD/M2 Lamp Type: LVDS
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C
High Light:

LVDS NEC TFT Display

,

VGA 76PPI TFT LCD Panel

NEC NL6448BC33-71D Summary

NEC LCD Technologies, Ltd. (hereafter called NEC) NL6448BC33-71D is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).




NEC NL6448BC33-71D Application Details

Basic Information :
Brand

Model
NL6448BC33-71D
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-30 ~ 80 °C
RoHS

2.0G (19.6 m/s²)Vibration



NEC NL6448BC33-71D Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.110×0.330 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.330×0.330 (H×V) [76PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
215.4(H) × 161.8(V)
Outline Dim.(mm)
243(H) × 185.1(V)
Depth(mm)
10.5±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Spec :
Weight
475/500g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



NEC NL6448BC33-71D Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
3/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
40%
sRGB
57% coverage
Adobe RGB
42% coverage
DCI-P3
42% coverage
Rec.2020
30% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





NEC NL6448BC33-71D Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
250/370mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SE20P-HFE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-170A



NEC NL6448BC33-71D Backlight Details

Backlight Features :
Type
WLED
Quantity
3 strings
Position
Edge light type (Top side)
Replacement
Replaceable (104LHS56)
Shape
3 strings
Life Time
70K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
15.9/18.0/20.4V (Min./Typ./Max.)
Current Supply
50/55mA (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM08B-SRSS-TB
1.0 mm
8 pins
1 pcs
BLE-8PINS-ACACACNN
Backlight Driver :
No
