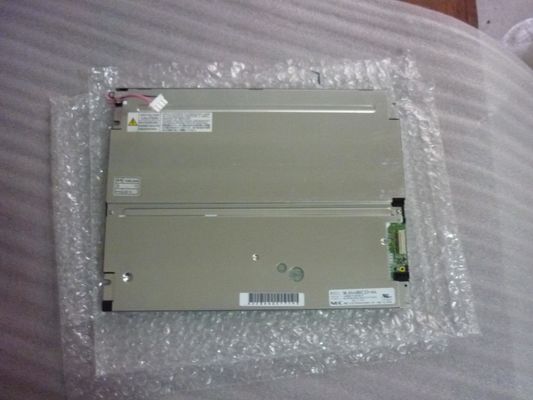

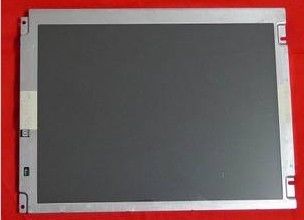

Product Details:
|
MODEL NUMBER: | NL6448BC33-70K | BRAND: | NEC |
---|---|---|---|
SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
BRIGHTNESS: | 450CD/M2 | Lamp Type: | CCFL |
TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C | ||
High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
---|---|---|---|---|
NL6448BC33-70K | a-Si TFT-LCD , LCM | - | ||
Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
-30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
---|---|---|---|
450 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 3/15 (Typ.)(Tr/Td) | |
Best View on | Display Mode | Contrast Ratio | |
- | TN, Normally White, Transmissive | 900 : 1 (Typ.) (Transmissive) | |
Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
Panel Size : | 10.4" | |||
---|---|---|---|---|
Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.330×0.330 [76PPI] | 0.110×0.330 | |
Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
211.2(H) × 158.4(V) | 215.4(H) × 161.8(V) | 243(H) × 185.1(V) | 10.5±0.5 mm | |
Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
Flat Rectangle | Landscape type | 4:3 (H:V) | ||
Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
Other Detail : | Weight | Panel Cover | Treatment | |
475/500g (Typ./Max.) | - | Clear, Hard coating (3H) |
Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
---|---|---|---|---|---|---|
WLED | Edge light type (Top side) | 3 strings | 3 strings | 70K(Typ.) | Replaceable (104LHS56) | |
WLED Electrical : | Voltage Supply | Current Supply | Power | |||
15.9/18.0/20.4V (Min./Typ./Max.) | 50/55mA (Typ./Max.) | |||||
Interface Features : | Position | Backlight Driver | Type | |||
- | No | Connector | ||||
Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
JST | SM08B-SRSS-TB | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-ACACACNN |
Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
---|---|---|---|---|---|---|
3.3/5.0V (Typ.) | 300/200mA (Typ.) | - | ||||
Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
Interface Features : | Position | Signal | Type | |||
- | CMOS (1 ch, 6-bit) | Connector | ||||
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
HRS | DF9C-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010F |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
