Product Details:
|

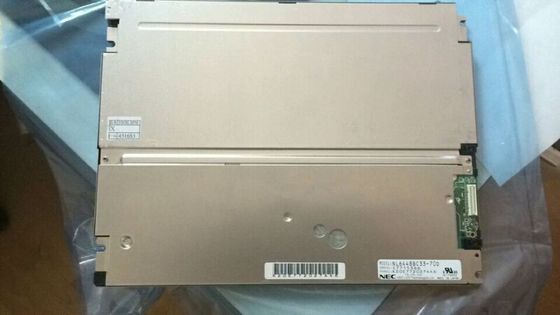

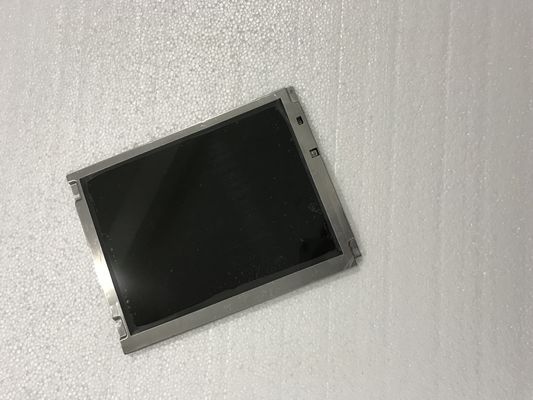

| MODEL NUMBER: | NL6448BC33-70G | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 450CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C | Viewing Angle: | 0/80/80/80 (Typ.)(CR≥10) |
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | NL6448BC33-70G | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 3/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×185.1(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm | Overall Depth | 10.5±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Detail : | Mass | 475/500g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 3.7W (Typ.) |
| Signal Electrical : | Input Current | 300/200mA (Typ.) | Input Voltage | 3.3/5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F | |
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (104LHS56) | Amount | 3 strings | Life | 70K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 50/55mA (Typ./Max.) | Input Voltage | 15.9/18.0/20.4V (Min./Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM08B-SRSS-TB | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-ACACACNN | |
| Backlight Driver : | No | |||||
