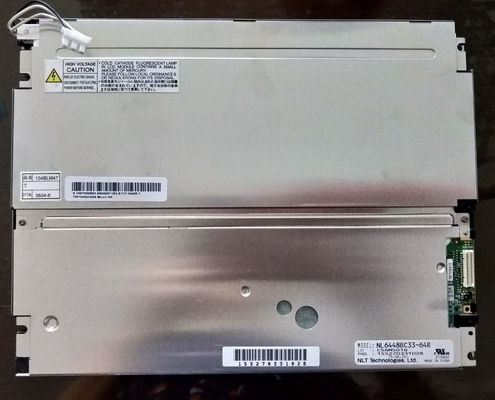

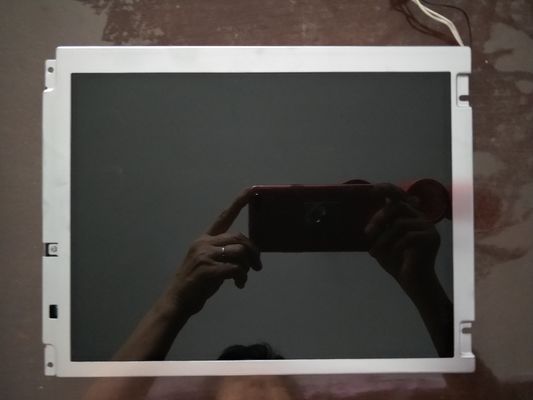

Product Details:
|

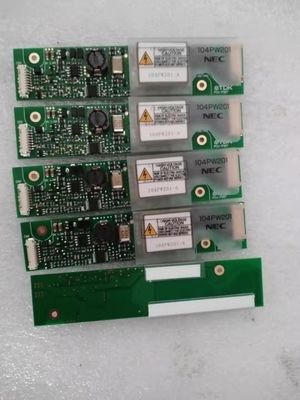

| MODEL NUMBER: | NL6448BC33-64R | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 450CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C | Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) |
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | NL6448BC33-64R | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 70 °C | Storage Temp. | -20 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.110×0.330 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.330×0.330 mm (H×V) [76PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dim. | 243×185.1 mm (H×V) | Outline Depth | 10.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Weight | 475/500g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 6/19 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 41% | sRGB | 57% coverage |
| Adobe RGB | 43% coverage | DCI-P3 | 43% coverage | |
| Rec.2020 | 31% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.2W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS47) | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 520V (Typ.) | Current Input | 2.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 50/70KHz (Min./Max.) | Kick-off Voltage | 850/1100V (Min.)(Ta=+25/-20℃) | |||
| Consumption | 5.2W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-LHH | |
| Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.) | Current Input | 300/200mA (Typ.) | ||
| Consumption | 0.99W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9C-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010F | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×185.1(H)×11(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 475/500g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, NL6448BC33-64R can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side), external backlight driver is additionally needed. NL6448BC33-64R utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3/5.0V (Typ.)
