NL6448BC33-64D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA

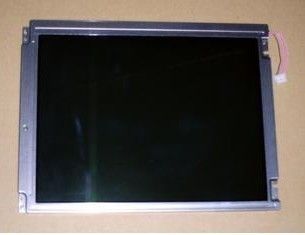

Large Image : NL6448BC33-64D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL6448BC33-64D

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	2-3 DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	500PCS

Contact Now

NL6448BC33-64D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA

Description

MODEL NUMBER:	NL6448BC33-64D	BRAND:	NEC
SIZE:	10.4INCH	RESOLUTION:	640×480RGB
BRIGHTNESS:	450CD/M2	Lamp Type:	CCFL
TEMPERATURE RANGE:	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:	LVDS NEC TFT Display , VGA 76PPI TFT LCD Panel

NEC NL6448BC33-64D Application Details

Basic Detail :	Manufacturer Model Name NL6448BC33-64D Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level 2.0G (19.6 m/s²)

NEC NL6448BC33-64D Optical Details

Basic Detail :	Luminance 450 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 6/25 (Typ.)(Tr/Td) ms Viewing Angle 80/80/80/55 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit) Color Temperature 6485K White Variation 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 41% sRGB 57% coverage Adobe RGB 43% coverage DCI-P3 43% coverage Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

NEC NL6448BC33-64D Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 243(W)×185.1(H) mm Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 10.5±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :	Mass 475/500g (Typ./Max.) Surface Antiglare, Hard coating (3H)

NEC NL6448BC33-64D Interface Detail

Signal Electrical :	Input Current 300/200mA (Typ.) Input Voltage 3.3/5.0V (Typ.) Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9C-31P-1V 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010F

NEC NL6448BC33-64D Lightting Details

Lamp Features :	Lamp Type CCFL Amount 2 pcs Position Edge light type (Top side) Exchange Replaceable (104LHS46) Lamp Shape Straight Lamp Life 50K(Typ.) (Hours)
Lamp Electrical :	Input Voltage 520V (Typ.) Input Current 2.0/5.0/5.5mA (Min./Typ./Max.) Frequency 50/72Khz (Min./Max.) Turn-on Voltage 850/1150V (Min.)(Ta=+25/-20℃)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BHR-04VS-1 4.0 mm 4 pins 1 pcs BLL-4PINS-HHNL
Backlight Driver :	No
