Product Details:
|

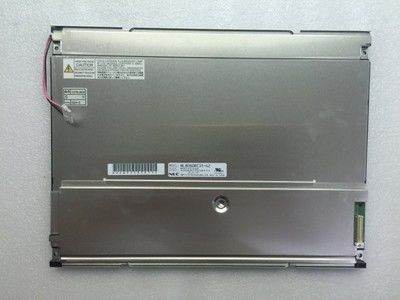

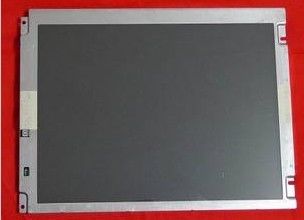

| MODEL NUMBER: | NL6448BC33-63C | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 450CD/M2 | Lamp Type: | LVDS |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | NL6448BC33-63C | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.110×0.330 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.330×0.330 mm (H×V) [76PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dim. | 243×185.1 mm (H×V) | Outline Depth | 10.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Weight | 475/500g (Typ./Max.) | Surface | Clear, Hard coating (3H), Antireflection |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 6/19 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 41% | sRGB | 57% coverage |
| Adobe RGB | 43% coverage | DCI-P3 | 43% coverage | |
| Rec.2020 | 31% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS46) | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 520V (Typ.) | Current Input | 2.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 50/72Khz (Min./Max.) | Kick-off Voltage | 850/1150V (Min.)(Ta=+25/-20℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 310/430mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-180A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
