NL6448BC33-59D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLA

Large Image : NL6448BC33-59D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLA

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL6448BC33-59D

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	120USD
Packaging Details:	STANDARD PACKING
Delivery Time:	2-3 DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	600PCS

Contact Now

NL6448BC33-59D NLT 10.4INCH 450CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLA

Description

MODEL NUMBER:	NL6448BC33-59D	BRAND:	NEC
SIZE:	10.4INCH	RESOLUTION:	640×480RGB
BRIGHTNESS:	450CD/M2	Lamp Type:	CCFL
TEMPERATURE RANGE:	Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
Highlight:	LVDS NEC TFT Display , VGA 76PPI TFT LCD Panel

NEC NL6448BC33-59D Overview

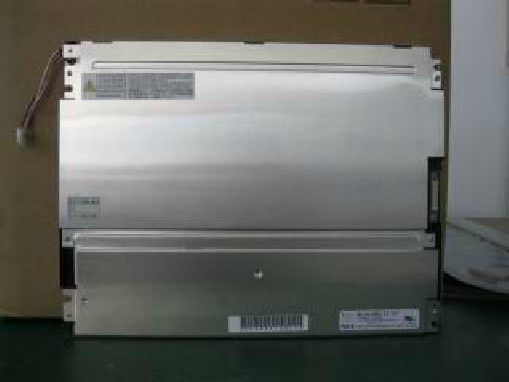

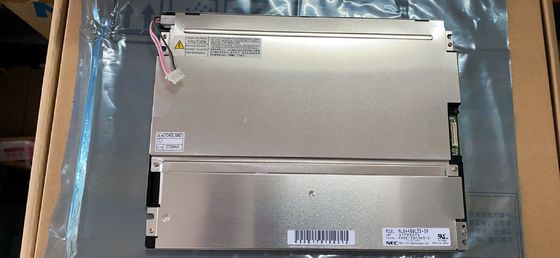

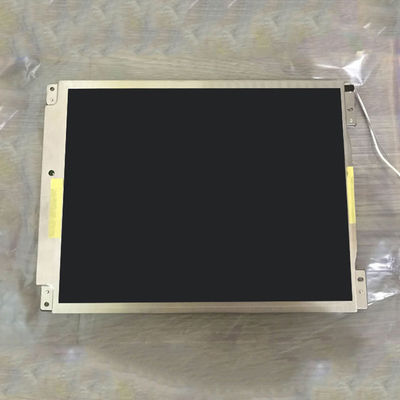

The NL6448BC33-59D is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

NEC NL6448BC33-59D Application Details

Basic Info :	Panel Brand Panel Model NL6448BC33-59D 1 Compatible Diagonal Size 10.4" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -10 ~ 70 °C Storage Temp. -20 ~ 80 °C RoHS State Vibration Rating 2.0G (19.6 m/s²)
Specific Features :
Remarks :	NL6448BC33-59: Clear, NL6448BC33-59D:Antiglare

NEC NL6448BC33-59D Mechanical Details

Pixel Features :	Pixel Format 640(RGB)×480, VGA Dot Pitch 0.110×0.330 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.330×0.330 mm (H×V) [76PPI]
Mechanical Size :	Display Area 211.2×158.4 mm (H×V) Bezel Area 215.4×161.8 mm (H×V) Outline Dim. 243×185.1 mm (H×V) Outline Depth 10.5±0.5 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Features :	Weight 475/500g (Typ./Max.) Surface Antiglare, Hard coating (3H)

NEC NL6448BC33-59D Optical Details

Basic Information :	Brightness 450 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 70/70/45/55 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 8/25 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit) Color Temperature 6485K Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamut :	NTSC Ratio 45% sRGB 62% coverage Adobe RGB 47% coverage DCI-P3 46% coverage Rec.2020 33% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
