Product Details:
|
| MODEL NUMBER: | NL6448BC33-54 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 220CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

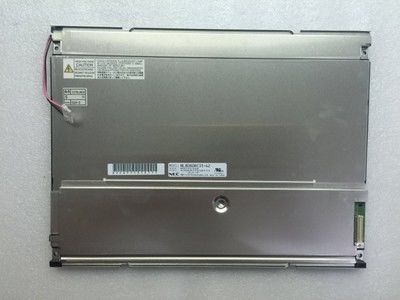

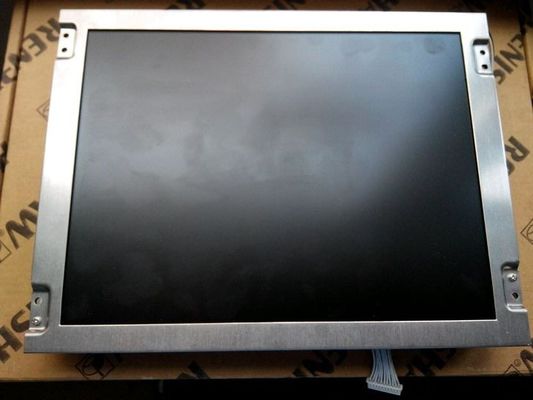

The NL6448BC33-54 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NL6448BC33-54 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 70 °C | -20 ~ 80 °C | 2.0G (19.6 m/s²) |
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 243×185.1 mm | 10.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 465/490g (Typ./Max.) | Clear, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/30/20 (Typ.)(CR≥10) | 12 o'clock | 15/23 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 8308K | 262K (6-bit) | X:0.286; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 64% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 180/300mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | CMOS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 2 pcs | - | Replaceable (104LHS35) | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.0/5.0/5.5mA (Min./Typ./Max.) | 520V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 850/1100V (Min.)(Ta=+25/-10℃) | 50/70KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LHH | |
