NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY

NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY
NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY

Large Image :  NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448BC33-53
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 600PCS
Contact Now

NL6448BC33-53 NLT 10.4INCH 380CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: -10 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: NL6448BC33-53 BRAND: NEC
SIZE: 10.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 380CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
High Light:

LVDS NEC TFT Display

,

VGA 76PPI TFT LCD Panel

NEC NL6448BC33-53 Summary

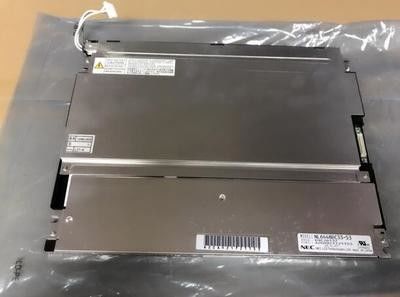

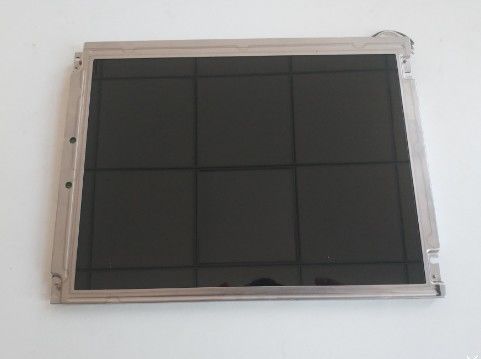

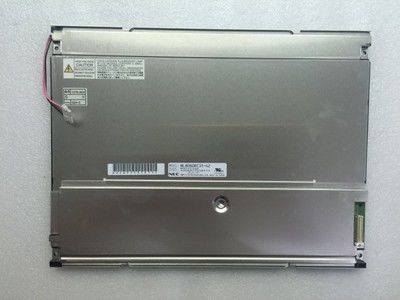

NL6448BC33-53 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).





NEC NL6448BC33-53 Application Details

Basic Info :
Panel Brand

Panel Model
NL6448BC33-53 Compatible
Diagonal Size
10.4"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 70 °C
Storage Temp.
-20 ~ 80 °C
RoHS State

Vibration Rating
2.0G (19.6 m/s²)



NEC NL6448BC33-53 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.110×0.330 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.330×0.330 mm (H×V) [76PPI]
Mechanical Size :
Display Area
211.2×158.4 mm (H×V)
Bezel Area
215.4×161.8 mm (H×V)
Outline Dim.
243×185.1 mm (H×V)
Outline Depth
10.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Features :
Weight
475/500g (Typ./Max.)
Surface
Clear, Hard coating (3H)



NEC NL6448BC33-53 Optical Details

Basic Information :
Brightness
380 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
SA-SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
18/16 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
41%
sRGB
57% coverage
Adobe RGB
43% coverage
DCI-P3
43% coverage
Rec.2020
31% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020





NEC NL6448BC33-53 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
2 pcs
Life Time
-
Replacement
Replaceable (104LHS39)
Lamp Shape
Straight
Position
Edge light type (Top side)
Lamp Electrical :
Voltage Input
520V (Typ.)
Current Input
2.0/5.0/5.5mA (Min./Typ./Max.)
Frequency
50/70KHz (Min./Max.)
Kick-off Voltage
850/1100V (Min.)(Ta=+25/-10℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-LHH



EC NL6448BC33-53 Interface Detail

Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VCC)
Current Input
210/140mA (Typ.)(ICC)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF9C-31P-1V
1.0 mm
31 pins
1 pcs
DRGB-31P1C6B-010F
