NL6448BC33-49 NLT 10.4INCH 200CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DISPLAY

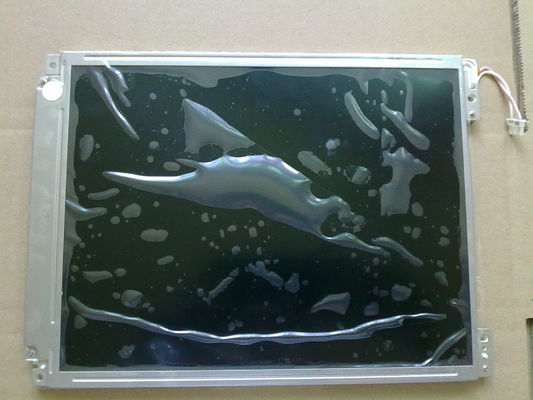

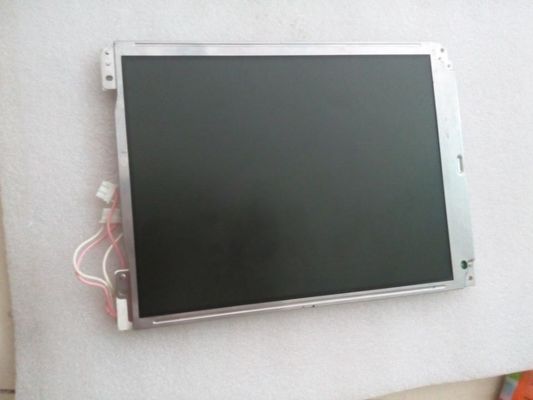

Large Image : NL6448BC33-49 NLT 10.4INCH 200CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL6448BC33-49

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	50USD
Packaging Details:	STANDARD PACKING
Delivery Time:	2-3 DAYS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	600PCS

Contact Now

NL6448BC33-49 NLT 10.4INCH 200CD/M2 LCM 640×480 640×480RGB CCFL TTL Operating Temp.: 0 ~ 55 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	NL6448BC33-49	BRAND:	NEC
SIZE:	10.4INCH	RESOLUTION:	640×480RGB
BRIGHTNESS:	200CD/M2	Lamp Type:	CCFL
TEMPERATURE RANGE:	Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -25 ~ 75 °C
Highlight:	LVDS NEC TFT Display , VGA 76PPI TFT LCD Panel

NEC NL6448BC33-49 Overview

The NL6448BC33-49 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -25 ~ 75°C , and the maximal vibration level of 1.0G (9.8 m/s²).

NEC NL6448BC33-49 Application Details

Basic Detail :	Manufacturer Model Name NL6448BC33-49 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 55 °C ST Temperature -25 ~ 75 °C RoHS Vibration Level 1.0G (9.8 m/s²)
Features :

NEC NL6448BC33-49 Optical Details

Basic Detail :	Luminance 200 cd/m² (Typ.) Contrast Ratio 300:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 10/40 (Typ.)(Tr/Td) ms Viewing Angle 70/70/40/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 262K (6-bit) Color Temperature 6485K White Variation 1.25/1.45 (Typ./Max.)(5 points)

NEC NL6448BC33-49 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 243(W)×185.1(H) mm Bezel Opening 216.2(W)×163.4(H) mm Overall Depth 10.5±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (4 pcs) on left, right bezel
Other Detail :	Mass 530/550g (Typ./Max.) Surface Antiglare, Hard coating (2H)

NEC NL6448BC33-49 Interface Detail

Signal Electrical :	Input Current 300/200mA (Typ.) Input Voltage 3.3/5.0V (Typ.) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9C-31P-1V 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010K
