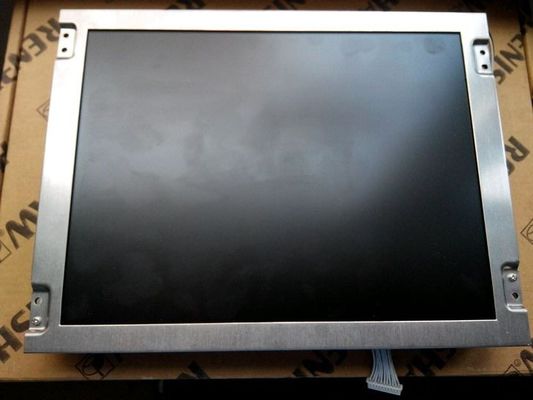

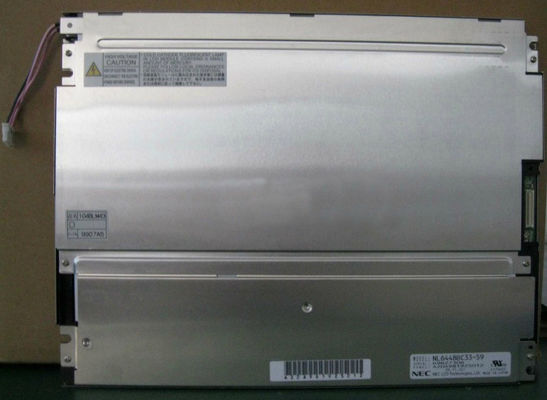

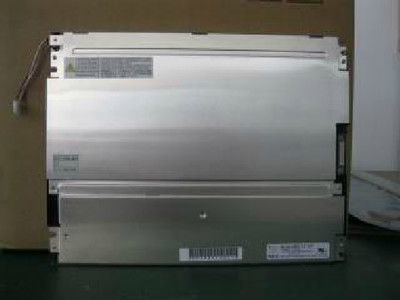

Product Details:
|
| MODEL NUMBER: | NL6448BC33-46 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 350CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | NL6448BC33-46  1 Compatible |
|
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 65 °C | ST Temperature | -20 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS | ||
| Features : | ||||
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 6/40 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/45/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6914K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 62% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 46% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×185.1(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm | Overall Depth | 11.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Detail : | Mass | 530/550g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Signal Electrical : | Input Current | 280/200mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F | |
