Product Details:
|
| MODEL NUMBER: | NL6448BC33-31D | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 350CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

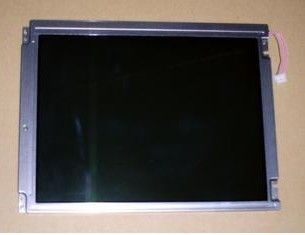

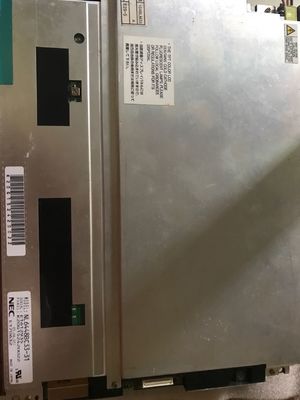

The NL6448BC33-31D is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²).
| Basic Info : | Panel Brand | Panel Model | NL6448BC33-31D | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.110×0.330 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.330×0.330 mm (H×V) [76PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dim. | 243×185.1 mm (H×V) | Outline Depth | 10.75/11.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Weight | 530/550g (Typ./Max.) | Surface | Antiglare, Antireflection |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/40/45 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 15/70 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
| Color Temperature | - | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS31) | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 510V (Typ.) | Current Input | 2.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 50/54/58KHz (Min./Typ./Max.) | Kick-off Voltage | 840/1265V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-LHH | |
| Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤5.25V | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VCC) | Current Input | 325/250mA (Typ.)(ICC) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9C-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010N | |
