NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

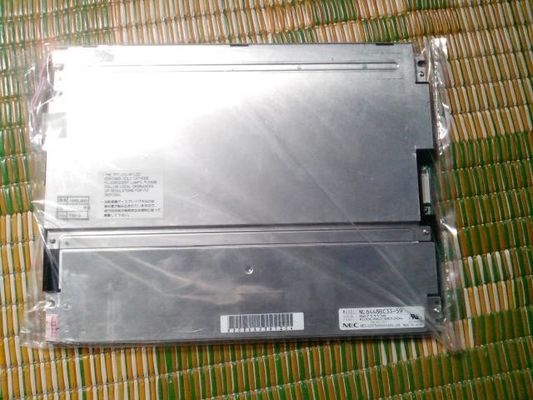

Large Image :  NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448BC33-27
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 50USD
Packaging Details: STANDARD PACKING
Delivery Time: 2-3 DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 600PCS
Contact Now

NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: NL6448BC33-27 BRAND: NEC
SIZE: 10.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 250CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

LVDS NEC TFT Display

,

VGA 76PPI TFT LCD Panel

NEC NL6448BC33-27 Summary

The NL6448BC33-27 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .





NEC NL6448BC33-27 Application Details

Basic Information :
Brand

Model
NL6448BC33-27
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
,
Vibration
-
Typical Features :




NEC NL6448BC33-27 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.110×0.330 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.330×0.330 (H×V) [76PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
-
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type



NEC NL6448BC33-27 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Viewing Angle
50/50/50/35 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
15/60 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
-
Display Colors
262K (6-bit)
Color Temperature
-
White Uniformity
1.25/1.40 (Typ./Max.)(5 points



NEC NL6448BC33-27 Interface Detail

Signal Electrical :
Voltage Supply
3.3/5.0V (Typ.)
Current Supply
325/250mA (Typ.)
Signal Type :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF9C-31P-1V
1.0 mm
31 pins
1 pcs



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

 NL6448BC33-27 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
