Product Details:
|

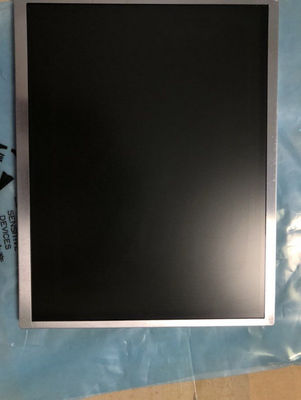

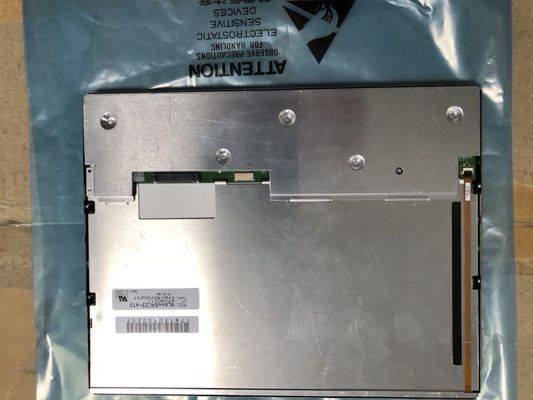

| MODEL NUMBER: | NL6448AC33-A1D | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 370CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NL6448AC33-A1D | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 80 °C | - | ||
| Designed For : |
|
|||
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | 227.3×177.5 mm | 9.8 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 380g (Max.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 370 cd/m² (Typ.) | TN, Normally White, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | - | 18 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) | - |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 100K(Typ.) | - | |
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 12.0V (Typ.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
