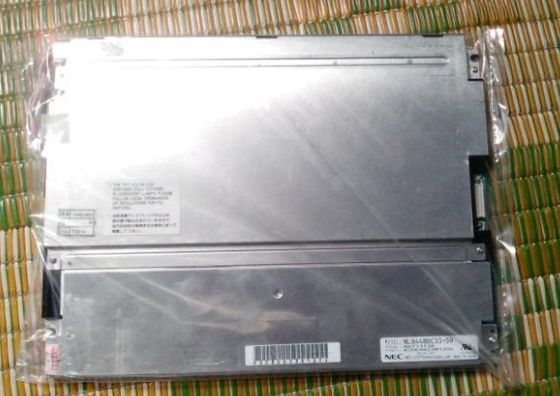

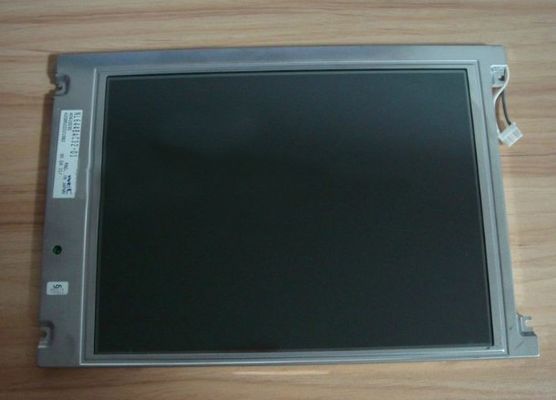

NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Large Image :  NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448AC33-29
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 120USD
Packaging Details: STANDARD PACKING
Delivery Time: 2-3day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 800PCS
Contact Now

NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: NL6448AC33-29 BRAND: NEC
SIZE: 10.4INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 250CD/M2 Lamp Type: CCFL
TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C
High Light:

LVDS TFT LCD Display

,

Transmissive NEC TFT Display

NEC NL6448AC33-29 Summary

NL6448AC33-29 is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²).It's general features are summarized by Panelook in the following: Lamp Repaceable, With Inverter, 180° Reverse . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q2, 1999, Now this model is discontinued. There are 7 items stock and 7 suppliers of this model on Panelook. We inputted this model's specification on Apr 8 2013 for the first time, and the latest update on May 11 2022. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail of NL6448AC33-29. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but mistakes maybe made during inputting.



NEC NL6448AC33-29 Application Details

Basic Info :
Panel Brand

Panel Model
NL6448AC33-29
Diagonal Size
10.4"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

Vibration Rating
2.0G (19.6 m/s²)
Specific Features :



NEC NL6448AC33-29 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.110×0.330 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.330×0.330 mm (H×V) [76PPI]
Mechanical Size :
Display Area
211.2×158.4 mm (H×V)
Bezel Area
215.4×161.8 mm (H×V)
Outline Dim.
243×185.1 mm (H×V)
Outline Depth
10.5/11.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Features :
Weight
525g (Typ.)
Surface
Clear, Antireflection



NEC NL6448AC33-29 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
150:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
50/50 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
-
Color Numbers
262K (6-bit)
Color Temperature
-
Uniformity
1.25/1.40 (Typ./Max.)(5 points)

 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL6448AC33-29 NLT 10.4INCH 250CD/M2 LCM 640×480 640×480RGB CCFL TTL Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
