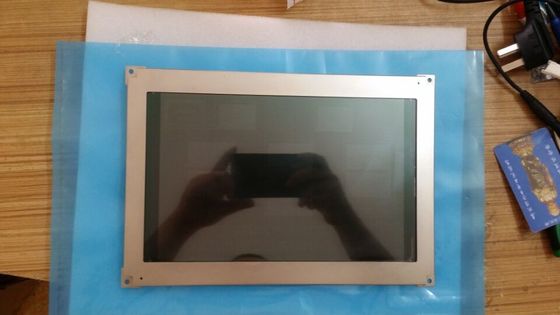

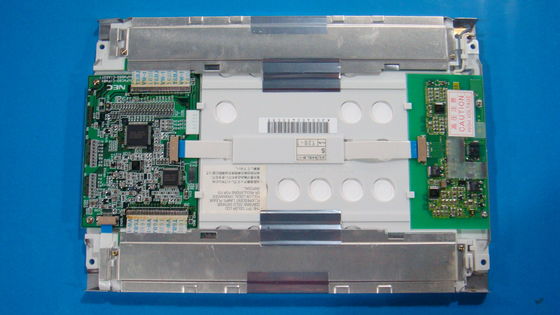

Product Details:
|
| MODEL NUMBER: | NL6448AC33-15 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 200CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL6448AC33-15 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 150 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 40 (Max.)(Tr) (ms) | |
| Viewing Angle | 50/50/15/45 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Full colo |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 251(W)×196(H) mm |
| Bezel Opening | 216.2(W)×161.4(H) mm | Overall Depth | 12.0/24.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Detail : | Mass | 750g (Typ.) | Surface | |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 9.4W (Typ.) |
| Signal Electrical : | Input Current | 80/150mA (Typ.)(ICC/IDD1) | Input Voltage | 5.0/12.0V (Typ.)(VCC/VDD1) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Analog RGB | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | IL-Z-10PL-SMTY | 1 pcs | 1.25 mm | 10 pins | ||
| JAE | IL-Z-13PL-SMTY | 1 pcs | 1.25 mm | 13 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 2 pcs | Life | - | |
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Input Current | 0.60A (Typ.) | Input Voltage | 12.0V (Typ.) | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 251(W)×196(H)×24(D) mm, viewing area size of 216.2(W)×161.4(H) mm, net weight of 750g (Typ.). As a TN, Normally White, Transmissive LCM product, NL6448AC33-15 can provides 200 cd/m² display brightness 150:1 transimissive contrast ratio, 50/50/15/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40 (Max.)(Tr) ms., thus presenting a palette of Full color colors, also with performance of color gamut 55% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom), With Inverter. NL6448AC33-15 utilizes Analog RGB as it's signal inputting systerm, which connected by 23 pins Connector with power supply voltage of 5.0/12.0V (Typ.)(VCC/VDD1).
