Product Details:
|
| MODEL NUMBER: | NL6448AC33-10 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 90CD/M | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||

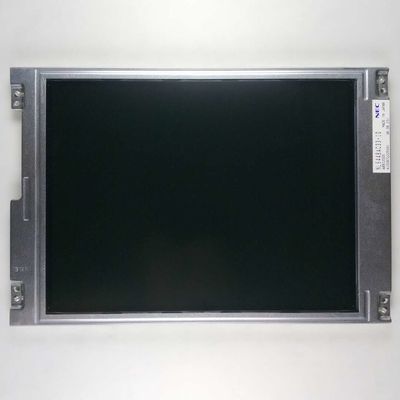

The NL6448AC33-10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
NL6448AC33-10 Application Details
| Basic Information : | Brand | Model | NL6448AC33-10 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 10.4" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 220.9(H) × 166.0(V) |
| Outline Dim.(mm) | 270(H) × 183(V) | Depth(mm) | 13.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Spec : | Weight | 700g (Typ.) | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 90 (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/25/25 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 40 (Max.)(Tr) | |
| Color Performance : | White Coordinate | - | Display Colors | 4096 (4-bit) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 200mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | IL-Z-R10PL-SMTY | 1 pcs | 10 pins | 1.25 mm | ||
| JAE | IL-Z-R13PL-SMTY | 1 pcs | 13 pins | 1.25 mm | ||
| JAE | IL-Z-R11PL-SMTY | 1 pcs | 11 pins | 1.25 mm | ||
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | - | |
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Voltage Supply | 5.2/20V (Min./Max.) | Current Supply | - | ||
| Consumption | 3.8 / 2.7W (Typ.) (12V / 7.2V) | |||||
