Product Details:
|
| MODEL NUMBER: | NL10276BC20-47 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 300CD/M2 | Lamp Type: | LVDS |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C | ||
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||

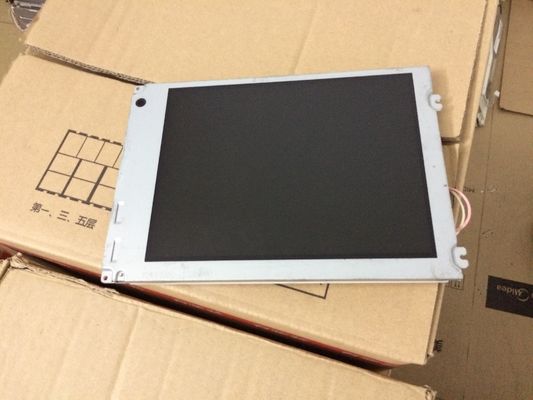

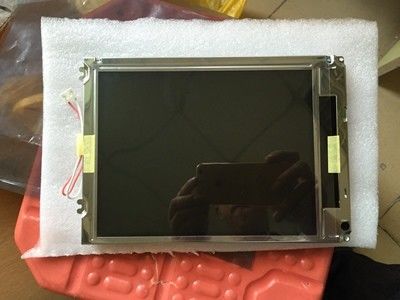

NLT Technologies, Ltd. (hereafter called NLT) NL10276BC20-47 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NLT NL10276BC20-47 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL10276BC20-47 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 55 °C | -20 ~ 60 °C | 2.0G (19.6 m/s²) | ||
| Used For : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 88/88/88/88 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | SFT, Normally Black, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 41% | 58% | 43% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 43% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.2055×0.2055 [123PPI] | 0.0685×0.2055 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 210.4(H) × 157.8(V) | 215.4(H) × 161.8(V) | 227(H) × 175.4(V) | 8.75±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | - | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 360/400g (Typ./Max.) | - | Clear, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 3 strings | 70K(Typ.) | Replaceable | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 17.9±1.6V | 45mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| AXT612124 | 12 pins | 1 pcs | BLE-12PINS-AAAAAACCCCCC | |||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 420/750mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6-bit) | Connector | |||||

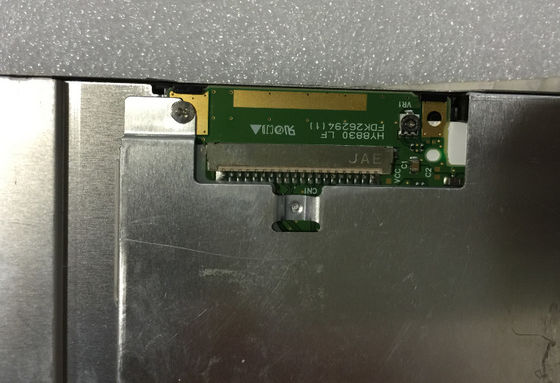

| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C6B-220A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
