NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS

NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS

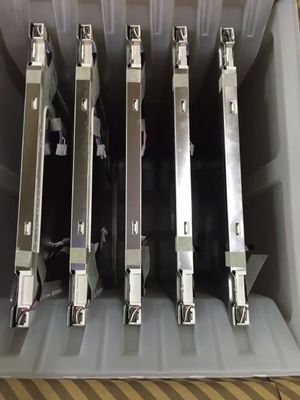

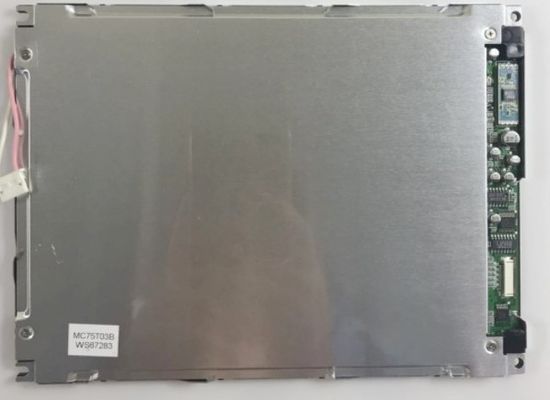

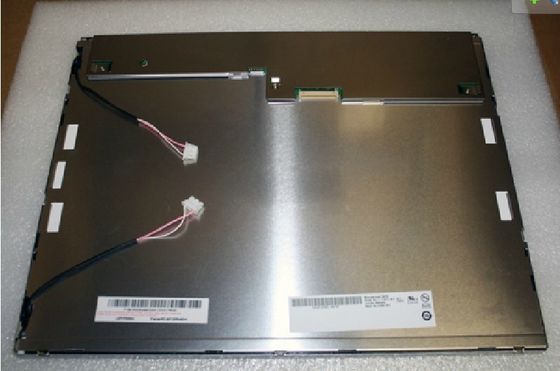

NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS

Large Image :  NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS

Product Details:
Place of Origin: JAPAN
Brand Name: NEC
Certification: ISO9001
Model Number: NL10276BC20-18C
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 120USD
Packaging Details: STANDARD PACKING
Delivery Time: 2-3DAYS
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 1000PCS
Contact Now

NL10276BC20-18C NLT 10.4INCH 800CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DIS

Description
MODEL NUMBER: NL10276BC20-18C BRAND: NEC
SIZE: 10.4INCH RESOLUTION: 1024×768RGB
BRIGHTNESS: 800CD/M2 Lamp Type: LVDS
TEMPERATURE RANGE: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

LVDS TFT LCD Display

,

Transmissive NEC TFT Display

NEC NL10276BC20-18C Overview

NL10276BC20-18C is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).



NEC NL10276BC20-18C Application Details

Basic Information :
Brand

Model
NL10276BC20-18C
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-30 ~ 80 °C
RoHS

Vibration
2.0G (19.6 m/s²)
Typical Features :
  •



NEC NL10276BC20-18C Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.0685×0.2055 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2055×0.2055 (H×V) [123PPI]
Mechanical Size :
Active Area(mm)
210.4(H) × 157.8(V)
Bezel Area(mm)
215.4(H) × 161.8(V)
Outline Dim.(mm)
228(H) × 178.5(V)
Depth(mm)
8.7±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M2) on left, right bezel
Other Spec :
Weight
380/400g (Typ./Max.)
Treatment
Clear, Hard coating (2H), Antireflection



NEC NL10276BC20-18C Optical Details

Basic Information :
Luminance(cd/m²)
800 (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
3/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.7M (6-bit / 8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
38%
sRGB
54% coverage
Adobe RGB
40% coverage
DCI-P3
40% coverage
Rec.2020
29% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-

 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
