Product Details:
|
| MODEL NUMBER: | NL10276BC20-10 | BRAND: | NCE |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 175CD/M2 | Lamp Type: | LVDS |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| Highlight: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||

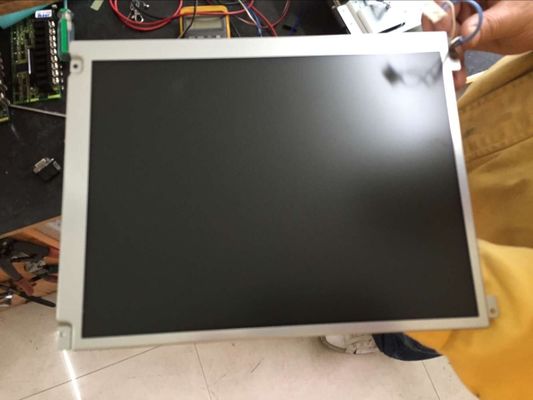

NEC LCD Technologies, Ltd. (hereafter called NEC) NL10276BC20-10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).
NEC NL10276BC20-10 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NL10276BC20-10 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 175 (Typ.) | 25/20/25/20 (Typ.)(CR≥10) | 8/22 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transflective | 150 : 1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 42% | 59% | 44% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 44% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 35% (Typ.) | |
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.2055×0.2055 [123PPI] | 0.0685×0.2055 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 210.4(H) × 157.8(V) | 215.4(H) × 161.8(V) | 228(H) × 178.5(V) | 8.7±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 380/400g (Typ./Max.) | - | Clear, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | - | 5 strings | 70K(Typ.) | Replaceable (104LHS50) | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 20.6/23.3/26.5V (Min./Typ./Max.) | 40/44mA (Typ./Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM10B-SRSS-TB | 1.0 mm | 10 pins | 1 pcs | BLE-10PINS-ACACACACAC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 370/610mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-170A | |
