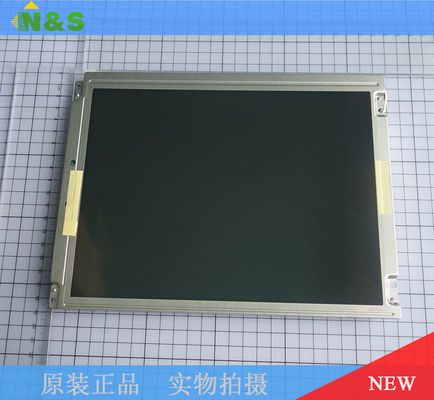

Product Details:
|
| MODEL NUMBER: | NL10276BC20-06Y | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 300CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | NL10276BC20-06Y | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.0685×0.2055 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] | |
| Mechanical Size : | Display Area | 210.4×157.8 mm (H×V) | Bezel Area | - |
| Outline Dim. | 243×185.1 mm (H×V) | Outline Depth | 17.6 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) | |||
| Other Features : | Weight | TBD | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/40 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS35) | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 520V (Typ.) | Current Input | 2.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 60/65/70KHz (Min./Typ./Max.) | Kick-off Voltage | 850/1100V (Min.)(Ta=+25/0℃) | |||
| Consumption | 5.21W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-LHH | |
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 300/500mA (Typ./Max.) | ||
| Consumption | 990mW (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SE20P-HF | 1.25 mm | 20 pins | 1 pcs | ||
