NL6448AC33-24 10.4 NEC Lamp Repaceable INDUSTURIAL DISPLAY Storage Temp.-20 ~ 60 °C

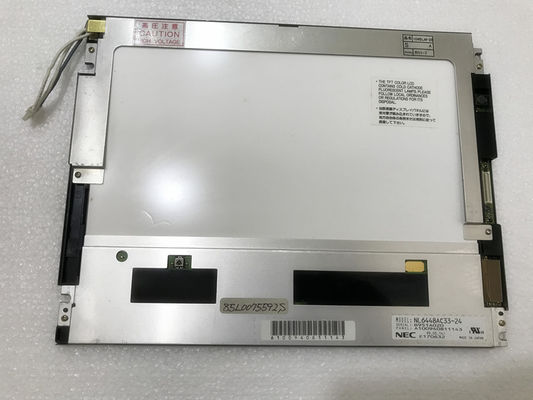

Large Image : NL6448AC33-24 10.4 NEC Lamp Repaceable INDUSTURIAL DISPLAY Storage Temp.-20 ~ 60 °C

Product Details:

Place of Origin:	Japan
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL6448AC33-24

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

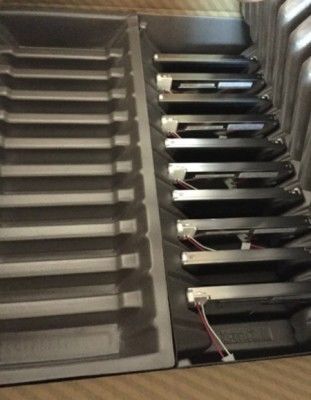

Packaging Details:	With Original Factory Package
Delivery Time:	1-3 Working Day
Payment Terms:	TT / Escrow 10 / Paypal / WesternUnion
Supply Ability:	500PCS

Contact Now

NL6448AC33-24 10.4 NEC Lamp Repaceable INDUSTURIAL DISPLAY Storage Temp.-20 ~ 60 °C

Description

Resolution:	640(RGB)×480 [VGA] 76PPI	Panel Type:	A-Si TFT-LCD , LCM
Pixel Format:	RGB Vertical Stripe	Brightness:	190 Cd/m² (Typ.)
Viewing Angle:	80/80/80/80 (Typ.)(CR≥10)	Max. Ratings:	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 M/s²)
Highlight:	LVDS TFT LCD Display , Transmissive NEC TFT Display

NEC NL6448AC33-24 Summary

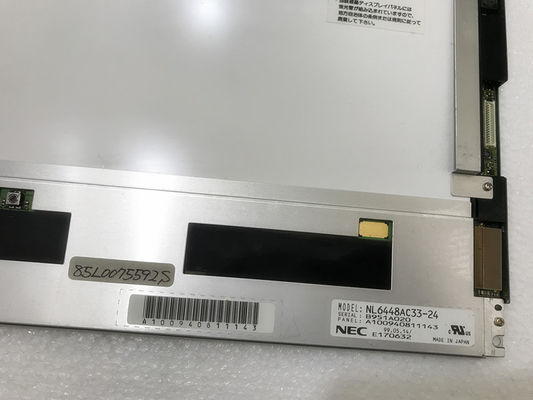

The NL6448AC33-24 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²).

NEC NL6448AC33-24 Application Details

Basic Detail :	Manufacturer Model Name NL6448AC33-24 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C RoHS Vibration Level 2.0G (19.6 m/s²)
Features :

NEC NL6448AC33-24 Optical Details

Basic Detail :	Luminance 190 cd/m² (Typ.) Contrast Ratio 150:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 50 (Typ.)(Tr+Td) ms Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode SFT, Normally Black, Transmissive
Color Performance :	Chromaticity - Support Color 262K (6-bit) Color Temperature - White Variation 1.25/1.40 (Typ./Max.)(5 points)

NEC NL6448AC33-24 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 243(W)×185.1(H) mm Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 10.7±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :	Mass 510g (Typ.)(With inverter) Surface -

NEC NL6448AC33-24 Interface Detail

Signal Electrical :	Input Current 400/300mA (Typ.)(ICC) Input Voltage 3.3/5.0V (Typ.)(VCC) Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9C-31P-1V 1.0 mm 31 pins 1 pcs
