NL10276BC20-10 10.4 NEC Transflective，Lamp Repaceable，WLED Backlight，Life ≥ 70K hours，180° Reverse，6/8 bit SR-NLT

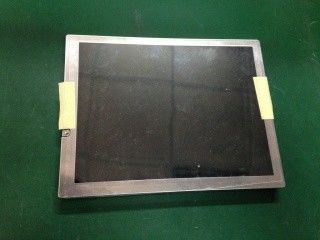

Large Image : NL10276BC20-10 10.4 NEC Transflective，Lamp Repaceable，WLED Backlight，Life ≥ 70K hours，180° Reverse，6/8 bit SR-NLT

Product Details:

Place of Origin:	Japan
Brand Name:	NEC
Certification:	ISO9001
Model Number:	NL10276BC20-10

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

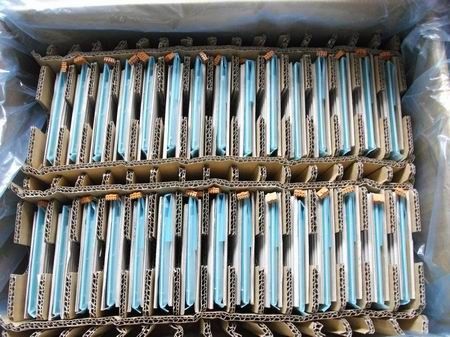

Packaging Details:	With Original Factory Package
Delivery Time:	1-3 Working Day
Payment Terms:	TT / Escrow 10 / Paypal / WesternUnion
Supply Ability:	500PCS

Contact Now

NL10276BC20-10 10.4 NEC Transflective，Lamp Repaceable，WLED Backlight，Life ≥ 70K hours，180° Reverse，6/8 bit SR-NLT

Description

Resolution:	1024(RGB)×768, XGA, 123PPI	Panel Type:	A-Si TFT-LCD, LCM
Pixel Format:	RGB Vertical Stripe	Brightness:	175 Cd/m² (Typ.)
Viewing Angle:	25/20/25/20 (Typ.)(CR≥10)	Diagonal Size:	10.4 Inch
Power Supply:	3.3V
Highlight:	LVDS TFT LCD Display , Transmissive NEC TFT Display

NEC NL10276BC20-10 Overview

NEC LCD Technologies, Ltd. (hereafter called NEC) NL10276BC20-10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

NEC NL10276BC20-10 Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.0685×0.2055 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.2055×0.2055 mm (H×V) [123PPI]
Mechanical Size :	Display Area 210.4×157.8 mm (H×V) Bezel Area 215.4×161.8 mm (H×V) Outline Dim. 228×178.5 mm (H×V) Outline Depth 8.7±0.5 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M2)
Other Features :	Weight 380/400g (Typ./Max.) Surface Clear, Hard coating (3H)

NEC NL10276BC20-10 Optical Details

Basic Information :	Brightness 175 cd/m² (Typ.) Contrast Ratio 150:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) Viewing Angle 25/20/25/20 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transflective Viewing Direction 6 o'clock Response Time 8/22 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6485K Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 42% sRGB 59% coverage Adobe RGB 44% coverage DCI-P3 44% coverage Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmittance - 3D Type - Reflectance 35% (Typ.)

NEC NL10276BC20-10 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 70K(Typ.) (Hours) Replacement Replaceable (104LHS50) Lamp Shape 5 strings Position Edge light type (Top side)
Lamp Electrical :	Voltage Input 20.6/23.3/26.5V (Min./Typ./Max.) Current Input 40/44mA (Typ./Max.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SM10B-SRSS-TB 1.0 mm 10 pins 1 pcs BLE-10PINS-ACACACACAC
