Product Details:
|
| Resolution: | 1024(RGB)×768, XGA, 123PPI | Panel Type: | A-Si TFT-LCD, LCM |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 60/60/45/60 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||

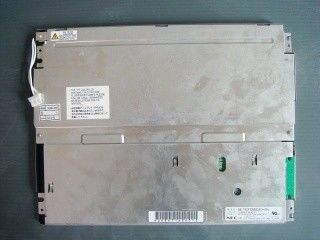

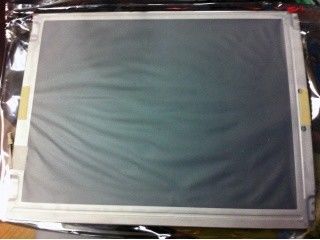

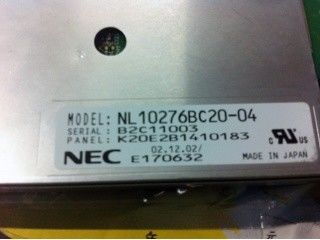

NEC LCD Technologies, Ltd. (hereafter called NEC) NL10276BC20-04 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, 180° Reverse . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q4, 2001 and last shippment on Q1, 2014, Now this model is discontinued. There are 5 items stock and 5 suppliers of this model on Panelook. We inputted this model's specification on Mar 30 2013 for the first time, and the latest update on Dec 25 2019. If you want to embed NL10276BC20-04 LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's distributor to learn lateast production and specification detail. The NL10276BC20-04 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
NEC NL10276BC20-04 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.0685×0.2055 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2055×0.2055 (H×V) [123PPI] | |
| Mechanical Size : | Active Area(mm) | 210.4(H) × 157.8(V) | Bezel Area(mm) | 215.4(H) × 161.8(V) |
| Outline Dim.(mm) | 243(H) × 185.1(V) | Depth(mm) | 11.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec : | Weight | 530/550g (Typ./Max.) | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/40 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.315; Y:0.340 | Display Colors | 262K (6-bit) |
| Color Temperature | 6304K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 41% | sRGB | 57% coverage |
| Adobe RGB | 43% coverage | DCI-P3 | 43% coverage | |
| Rec.2020 | 31% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS35) | Quantity | 2 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 520V (Typ.) | Current Supply | 2.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 60/65/70KHz (Min./Typ./Max.) | Startup Voltage | 850/1100V (Min.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LHH | |
| Backlight Driver : | No | |||||
