MAX1300BEUG+ 976mW 16 Bit 115 KSPS Data Conversion ICs

MAX1300BEUG+ 976mW 16 Bit 115 KSPS Data Conversion ICs
MAX1300BEUG+ 976mW 16 Bit 115 KSPS Data Conversion ICs MAX1300BEUG+ 976mW 16 Bit 115 KSPS Data Conversion ICs

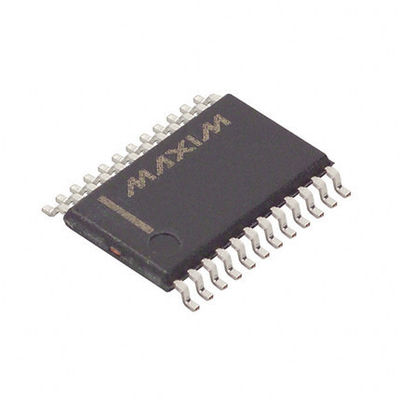

Large Image :  MAX1300BEUG+ 976mW 16 Bit 115 KSPS Data Conversion ICs

Product Details:
Brand Name: MAXIM
Certification: ISO9001
Model Number: MAX1300BEUG+
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Depend How Many Do You Need
Packaging Details: Tape & Reel (TR)/Cut Tape (CT)/Tray/Tube
Delivery Time: Working Day 1-3 Days
Payment Terms: TT / Escrow 10 / Paypal / WesternUnion/Net 10
Supply Ability: 5000PCS

MAX1300BEUG+ 976mW 16 Bit 115 KSPS Data Conversion ICs

Package: TSSOP-24 Date Code: 19+
RoHs Status: Rohs Packaging: Tape & Reel (TR)/Cut Tape (CT)/Tray/Tube
Warranty: 365 Days Quality: New And Original
Lead Time: Stock,Just Working Day One Day
High Light:

115 KSPS Data Conversion ICs


976mW Data Conversion ICs


MAX1300BEUG+ Ic Chip

1. Integrated circuits:


  Integrated circuits are referred to as ICs, chips, or microchips. The integration of large numbers of tiny transistors into a small chip replaces the manual assembly of circuits using discrete electronic components. Integrated circuits has many features such as mass production capability, reliability, and building-block approach to circuit design, which makes the adoption of standardized ICs in place of designs using discrete transistors. Integrated circuits can be classified into analog, digital and mixed signal (both analog and digital on the same chip). The manufacturing process includes fabrication, packaging and chip labeling and manufacture date. They are widely used in all electronic equipment, including computers, mobile phones, and other digital appliances.


  Our company  as a supplier of electronic parts, selling many types of integrated circuits. brand integrated circuit manufacturers including Analog Devices, Atmel, Cypress, Fairchild, IDT, Maxim Integrated, NXP, ON Semiconductor.Choose us as your cheap,obsolete,new,excess integrated circuits(ICS)chip supplier,distributor.



2. Main Information:


  The MAX1300BEUG+ is an 8 channel, ±3 x VREF multirange inputs, serial 16bit ADC in 24 pin TSSOP package. The successive approximation ADC operates from a single +5V supply and achieve throughput rates up to 115Ksps. A separate digital supply allows digital interfacing with 2.7V to 5.25V systems using the SPI/QSPI/MICROWIRE compatible serial interface. Partial power-down mode reduces the supply current to 1.3mA.


  Full power-down mode reduces the power supply current to 1µA. It has eight single ended analogue input channels or four differential channels. Each analogue input channel is independently software programmable for seven single ended input ranges [0 to (+3 x VREF)/2, (-3 x VREF)/2 to 0, 0 to +3 x VREF, -3 x VREF to 0, (±3 x VREF)/4, (±3 x VREF)/2, ±3 x VREF] & three differential input ranges [(±3 x VREF)/2, ±3 x VREF, ±6 x VREF]. All analogue input channels are fault tolerant to ±16.5V. A fault condition on an idle channel does not affect the conversion result of other channe.


3. Feature:

Software programmable input range for each channel
Operating temperature range from -40°C to 85°C
±16.5V overvoltage tolerant inputs
Internal or external reference
Integral nonlinearity is ±1LSB and differential nonlinearity is 2LSB max
Internal track and hold (T/H) circuitry


4. MAX1300BEUG+ Technical Parameters:


Number of Channels 44047 Mounting Style SMD/SMT
Architecture SAR Package / Case TSSOP-24
Conversion Rate 115 KSPs Maximum Power Dissipation 976 mW
Resolution 16 bit Minimum Operating Temperature - 40C
Input Type Single-Ended/Differential Number of Converters 1
SNR 91 dB Packaging Tube
Interface Type MICROWIRE, QSPI, SPI, Serial Series MAX1300, MAX1301
Operating Supply Voltage 4.75 V to 5.25 V Factory Pack Quantity 62
Maximum Operating Temperature + 85 C Voltage Reference Internal, External



  • 5. FAQ:


Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.


Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
