Product Details:
|
| Size: | 5.6 | Resolution: | 320(RGB)×234 71PPI |
|---|---|---|---|
| Panel Type: | LCM , A-Si TFT-LCD | Pixel Format: | RGB Vertical Stripe |
| Outline(mm): | 126.5 × 100 (H×V×D) | Contrast Ratio: | 300 : 1 (Typ.) (TM) |
| Treatment: | Antiglare | Lamp Type: | 2S7P WLED , No Driver |
| Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||

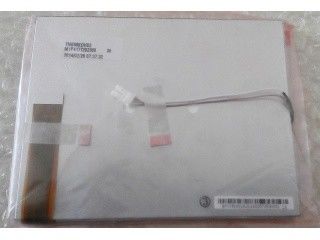

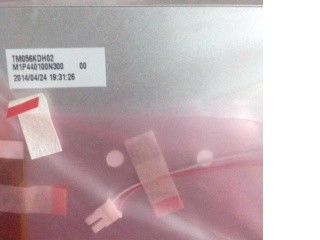

| Highlight: | 71PPI TIANMA LCD Display,330cd/m² TIANMA LCD Display,TM056KDH02 |
||
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
| Panel Size : | 5.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×234 | RGB Vertical Stripe | 0.118×0.362 mm | 0.354×0.362 mm [71PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 113.28×84.708 mm | 116.08×87.51 mm | 126.5×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 123g (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 330cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/45/65 (Typ.)(CR≥10) | 12 o'clock | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | Full color | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 71% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 2S7P | 20K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 140mA (Typ.) | 6.4V (Typ.) | 896mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
