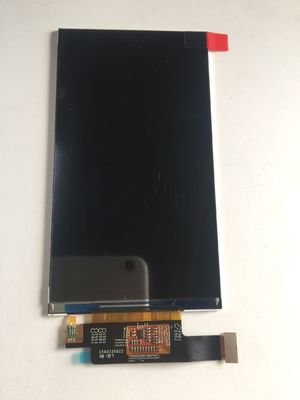

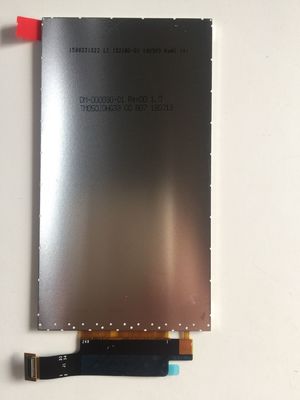

Product Details:
|
| Size: | 5 Inch | Screen Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Pixel Number: | 720(RGB)×1280 [WXGA] 294PPI | Luminance: | 600 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Response: | 30 (Typ.)(Tr+Td) | Backlight: | WLED , 50K Hours , Without Driver |
| Signal Type: | MIPI (4 Data Lanes) , 34 Pins Connector | Max. Ratings: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | WLED Backlight TFT LCD Display,SPI FSTN LCD Display,Resistive Touch Tianma TFT |
||
1. HIGHEST QUALITY STANDARD DISPLAYS:
| Panel Size : | 5.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 720(RGB)×1280, WXGA | RGB Vertical Stripe | 0.02875×0.08625 mm | 0.08625×0.08625 mm [294PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 62.1×110.4 mm | - | 65.4×118.9 mm | 1.7±0.1 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 9:16 (W : H) | Portrait type | - | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Clear, Hard coating | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6444K | 16.7M (8-bit) | X:0.312; Y:0.341 | |
| 1931 Color Gamlt | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 98% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 1.8/2.8V (Typ.)(VDDIO/VCC) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | MIPI (4 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF30FC-34DP-0.4V | 1 pcs | 0.4 mm | 34 pins | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
