Product Details:
|
| Screen Size: | 12.1 | Pixel Number: | 800(RGB)×600 (SVGA) 82PPI |
|---|---|---|---|
| Active Area(mm): | 246 × 184.5 (H×V) | Luminance: | 370 Cd/m² (Typ.) |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , 41 Pins Connector | Max. Ratings: | -30 ~ 70 °C |
| Screen Type: | LCM, A-Si TFT-LCD | Arrangement: | RGB Vertical Stripe |
| Outline(mm): | 276 × 209 × 11 (H×V×D) | Work Mode: | TN, Normally White, Transmissive |
| Highlight: | 800×600 Industrial LCD Panel,12.1" Industrial LCD Panel,LQ121S1DG41 |
||

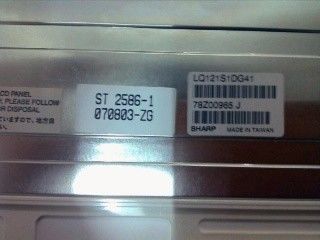

LQ121S1DG41 12.1 INCH SHARP TFT-LCD 800(RGB)×600 (SVGA) 82PPI PIXEL -30 ~ 70 °C Industrial LCD Panel
1. Main Information:
The LQ121S1DG41 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 246×184.5 mm | 249.0×187.5 mm | 276×209 mm | 11.0 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 660g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 370 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 50K(Min.) | 2 pcs | Straight | Replaceable (LQ0DDB5399) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 533V (Typ.) | 3.0/6.0/6.5mA (Min./Typ./Max.) | 7.0W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 35/60/80KHz (Min./Typ./Max.) | 1200/1500V (Max.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
