Product Details:
|
| Size: | 7 Inch | Resolution: | 800*480 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Support Color: | 262K/16.7M 50% NTSC |
| Interface Type: | Parallel RGB (1 Ch, 6/8-bit) , FPC 60 Pins | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | TM070RDH12,7" TFT LCD Panel,800*480 TFT LCD Panel |
||
1. Main Information:

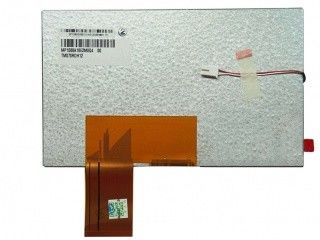

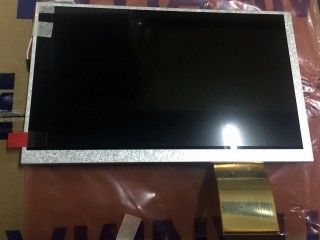

Tianma Microelectronics Co., Ltd.TM070RDH12 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features,this model be applied to Automotive Display, Digital Photo Frame, Portable DVD Player etc.
2. TIANMA TM070RDH12 Mechanical Features:
| Panel Size : | 7 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0642×0.1790 mm | 0.1926×0.1790 mm [134PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 154.08×85.92 mm | 157.08×90.1 mm | 164.9×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | - | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antiglare | ||
3. TIANMA TM070RDH12 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5864K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.324; Y:0.345 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 71% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
4. TIANMA TM070RDH12 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S7P | 20K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 140mA (Typ.) | 9.6/11.4V (Typ./Max.) | 1.344W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
