1. Main Information:

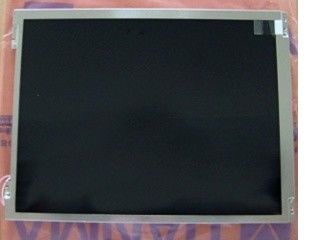

Tianma Microelectronics Co., Ltd.TS104SAALC01-00 (Alias: TM104SCH02) is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TS104SAALC01-00 Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 230 (Typ.) | 70/70/60/70 (Typ.)(CR≥10) | 10 (Typ.)(TTr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6584K | 262K (6-bit) | X:0.311; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 71% | 53% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) | ||
3. TIANMA TS104SAALC01-00 Mechanical Features:
| Panel Size | 10.4 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 215.0(H) × 162.0(V) | 236(H) × 176.9(V) | 5.6±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Mounting : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 288g (Typ.) | - | Antiglare, Hard coating (3H) | ||
4. TIANMA TS104SAALC01-00 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | Straight | - | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 520±52V | 3.0/5.5/7.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 40/60/80KHz (Min./Typ./Max.) | 890V (Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
