Product Details:
|
| Size: | 7 Inch | Resolution: | 800*480 |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) | Support Color: | 262K/16.7M 50% NTSC |
| Interface Type: | Parallel RGB (1 Ch, 6/8-bit) , 50 Pins FPC | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | 800*480 TFT Photo Frame Panel,7 Inch TFT Photo Frame Panel,TM070RDH10-42 |
||
1. Main Information:

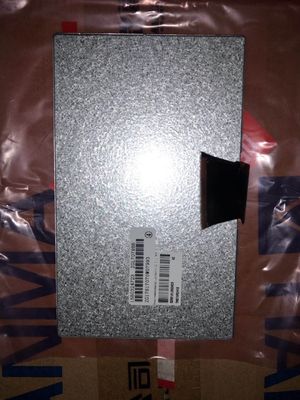

Tianma Microelectronics Co., Ltd.TM070RDH10-42 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte , 80.15mm length FPC. Based on its features,this model be applied to Industrial, Digital Photo Frame, Portable DVD Player etc.
2. TIANMA TM070RDH10-42 Mechanical Details:
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0642×0.1790 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1926×0.1790 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 154.08×85.92 mm (H×V) | Bezel Area | 157.08×89.39 mm (H×V) |
| Outline Dim. | 164.9×100 mm (H×V) | Outline Depth | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | - | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 160g (Typ.) | Surface | Antiglare |
3. TIANMA TM070RDH10-42 Optical Details:
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.330 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6371K | White Uniformity | 1.33 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM070RDH10-42 Backlight Details:
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S8P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.6/10.8V (Typ./Max.) | Current Input | 160/200mA (Typ./Max.) | ||
| Consumption | 1.54/2.16W (Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
