Product Details:
|
| Size: | 2.2 Inch | Resolution: | 240*320 |
|---|---|---|---|
| Luminance: | 90cd/m² (Typ.) | Viewing Angle: | 40/45/48/45 (Typ.)(CR≥10) |
| Support Color: | 262K 50% NTSC | Interface Type: | Parallel RGB (1 Ch, 6-bit) + SPI , 39 Pins FPC |
| Contrast Ratio: | 120:1 (Typ.) (TM) 10:1 (Typ.) (RF) | Touch Panel: | Without |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | 240*320 TFT LCD display,90cd/m² TFT LCD display,TM022HDHT11 |
||
1. Main Information:

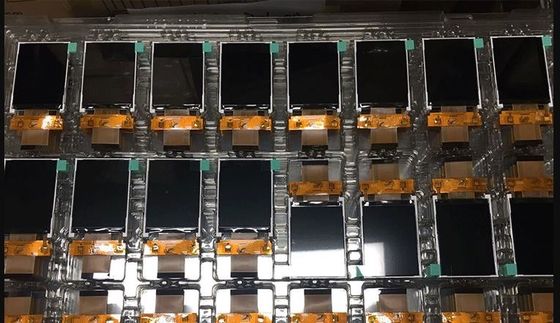

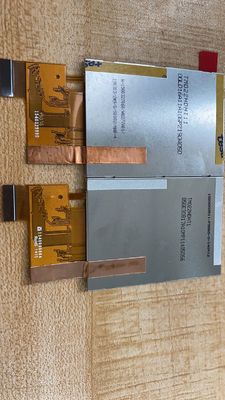

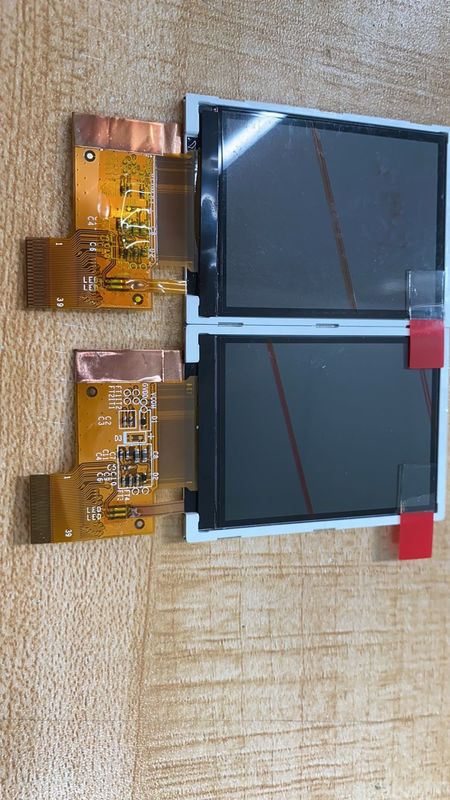

The TM022HDHT11 is a 2.2 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: Portrait type, Transflective, WLED Backlight , R-EVT. Based on its features,this model be applied to Mobile Phone, Handheld & PDA etc.
2. TIANMA TM022HDHT11 Optical Details:
| Basic Information : | Luminance | 90 cd/m² (Typ.) | Contrast Ratio | 120 : 1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 40/45/48/45 (Typ.)(CR≥10) | Operating Mode | ECB, Normally White, Transflective | |
| Color Performance : | Chromaticity | Wx:0.273; Wy:0.296 | Support Color | 262K (6-bit) |
| Color Temperature | 10418K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 5.5% (Typ.) |
3. TIANMA TM022HDHT11 Mechanical Details:
| Pixel Features : | Number of Pixel | 240(RGB)×320 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.047×0.141 mm | Pixel Pitch(W×H) | 0.141×0.141 mm [180PPI] | |
| Physical Size : | Active Viewing | 33.84(W)×45.12(H) mm | Overall Dim. | 40.6(W)×56.6(H) mm |
| Bezel Opening | 34.84(W)×46.12(H) mm | Overall Depth | 2.7±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:4 | Shape Style | - | |
| Other Detail | Mass | TBD | Surface | Clear, Hard coating (3H) |
4. TIANMA TM022HDHT11 Lightting Details:
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4S1P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 20/25mA (Typ./Max.) | Input Voltage | 12/12.6/14.4V (Min./Typ./Max.) | ||
| Consumption | 246mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
