Product Details:
|
| Size: | 3.5 Inch | Resolution: | 240*320 |
|---|---|---|---|
| Luminance: | 80 Cd/m² (Typ.) | View Direction: | 6 O'clock |
| Viewing Angle: | 40/45/55/40 (Typ.)(CR≥10) | Support Color: | 262K 37% NTSC |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) + SPI , 50 Pins FPC | Contrast Ratio: | 150:1 (Typ.) (TM) 2.5:1 (Typ.) (RF) |
| Touch Panel: | 4-wire Resistive Touch | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| Highlight: | 240*320 Tianma TFT,3.5 Inch Tianma TFT,TM035HBHT6 |
||
1. Main Information:

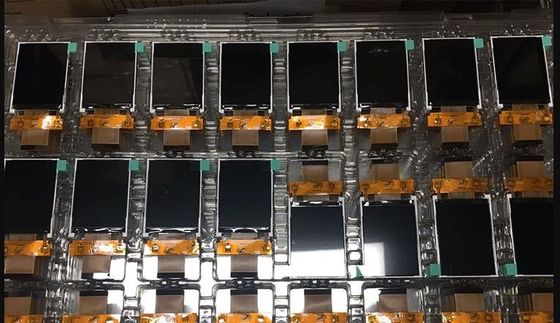

Tianma Microelectronics Co., Ltd.TM035HBHT6 is a 3.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are following: Portrait type, With Touch, Transflective, WLED Backlight , R-EVT; 3 in 1 FPC; Left side FPC (17.00mm length). Based on its features,this model be applied to Handheld & PDA etc.
2. TIANMA TM035HBHT6 Mechanical Details:
| Pixel Features : | Pixel Format | 240(RGB)×320 [QVGA] | Dot Pitch | 0.0745×0.2235 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2235×0.2235 mm (H×V) [113PPI] | |
| Mechanical Size : | Display Area | 53.64×71.52 mm (H×V) | Bezel Area | - |
| Outline Dim. | 64×85 mm (H×V) | Outline Depth | 4.13±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | - | |
| Touch Screen | Touch Points | 1 point | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 44.4g | Surface | Hard coating |
3. TIANMA TM035HBHT6 Optical Details:
| Basic Information : | Brightness | 80 cd/m² (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) 2.5:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/45/55/40 (Typ.)(CR≥10) | Optical Mode | ECB, Normally White, Transflective | |
| Viewing Direction | 6 o'clock | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.301; Wy:0.321 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7272K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 37% | sRGB | 52% coverage |
| Adobe RGB | 39% coverage | DCI-P3 | 39% coverage | |
| Rec.2020 | 28% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 5.5% (Typ.) |
4. TIANMA TM035HBHT6 Interface Details:
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) + SPI | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 2.8/15.0/-10.0V (Typ.)(VCC/VGH/VGL) | Current Input | - | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
