Product Details:
|
| Size: | 5.6 Inch | Resolution: | 320*234 |
|---|---|---|---|
| Luminance: | 330 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 65/65/45/65 (Typ.)(CR≥10) | Support Color: | Full Color 50% NTSC |
| Interface Type: | TFT Specific Analog RGB , 26 Pins FPC | Contrast Ratio: | 300 : 1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | 5.6 Inch Tianma TFT,WLED Backlight Tianma TFT,TM056KDH02 |
||
1. Main Information:

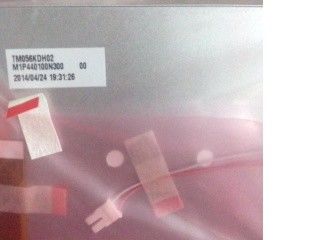

The TM056KDH02 (Alias: TS056KAAAD02-00) is a 5.6 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, U/D,L/R Reverse, Matte . Based on its features,this model be applied to Industrial, Digital Photo Frame, Portable DVD Player, Video Door Phone etc.
2. TIANMA TM056KDH02 Mechanical Details:
| Pixel Features : | Resolution | 320(RGB)×234 | Dot Pitch(mm) | 0.118×0.362 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.354×0.362 (H×V) [71PPI] | |
| Mechanical Size : | Active Area(mm) | 113.28(H) × 84.708(V) | Bezel Area(mm) | 116.08(H) × 87.51(V) |
| Outline Dim.(mm) | 126.5(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec | Weight | 123g (Typ.) | Treatment | Antiglare |
3. TIANMA TM056KDH02 Optical Details:
| Basic Information : | Luminance(cd/m²) | 330 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | Full color |
| Color Temperature | 6638K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM056KDH02 Backlight Details:
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2S7P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical | Voltage Supply | 6.4V (Typ.) | Current Supply | 140mA (Typ.) | ||
| Consumption | 896mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLE-2PINS-AC | |
| Backlight Driver | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
