Product Details:
|
| Size: | 2.4 Inch | Resolution: | 128×64, 59PPI |
|---|---|---|---|
| Panel Type: | FSTN-LCD , LCM | Pixel Format: | Rectangle |
| Best View On: | 6 O'clock | Display Colors: | Monochrome |
| Signal Interface: | SPI , 20 Pins FPC | Contrast Ratio: | 3:1 (Min.) (RF) |
| Touch Panel: | Without | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | 2.4 Inch FSTN LCD Display,SPI FSTN LCD Display,TM12864G3CCWGWA-1 |
||
1. Main Information:

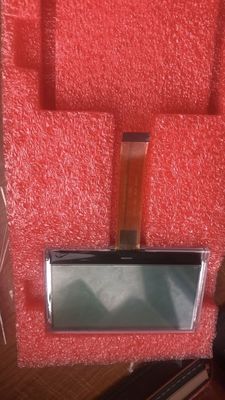

The TM12864G3CCWGWA-1 is a 2.4 inch diagonal FSTN-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: Transflective, WLED Backlight . Based on its features, this model be applied to Instruments & Meters etc.
2. TIANMA TM12864G3CCWGWA-1 Mechanical Details:
| Pixel Features : | Pixel Format | 128×64 | Dot Pitch | 0.43×0.43 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.43×0.43 mm (H×V) [59PPI] | |
| Mechanical Size : | Display Area | 55.01×27.49 mm (H×V) | Bezel Area | 58×29.5 mm (H×V) |
| Outline Dim. | 70×43 mm (H×V) | Outline Depth | 9.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 2:1 (H:V) | Shape Style | - | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 26.0g | Surface | - |
3. TIANMA TM12864G3CCWGWA-1 Optical Details:
| Basic Information : | Brightness | - | Contrast Ratio | 3:1 (Min.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | - | Optical Mode | STN, Black/White (Positive), Transflective | |
| Viewing Direction | 6 o'clock | Response Time | 250/200 (Max.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4. TIANMA TM12864G3CCWGWA-1 Backlight Details:
| Back-light Features: | Lamp Shape | Parallel | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1S4P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 4.0±0.2V | Current Input | 60mA (Typ.) | ||
5. TIANMA TM12864G3CCWGWA-1 Interface Details:
| Signal Systerm | SPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.0V (Typ.) | Current Input | 8.0mA (Max.) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 20 pins | 1 pcs | ||||
