Product Details:
|
| Size: | 5.7 Inch | Resolution: | 320*240 |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | View Direction: | 6 O'clock |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) | Support Color: | 262K 50% NTSC |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Backlight TFT LCD Display,Portrait Tianma TFT,Tianma TFT LCD Panel |
||
1. Main Information:

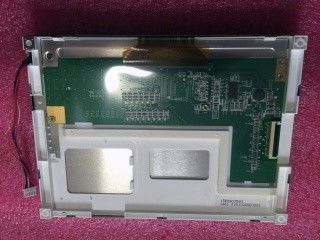

TM057KDH01 is a 5.7" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . It's general features are following: WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse, Matte , lamp wire length: 80mm. Based on its features,this model be applied to Industrial etc.
2. TIANMA TM057KDH01 Mechanical Features:
| Screen Size : | 5.7 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | 118.2×89.4 mm | 144×104.6 mm | 12.8 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 160g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
3. TIANMA TM057KDH01 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/70/60 (Typ.)(CR≥10) | 20/30 (Typ./Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 5814K | 262K (6-bit) | X:0.324; Y:0.362 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 73% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
4. TIANMA TM057KDH01 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | 5S3P | 3 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 14.85/18.15V (Min./Max.) | 25mA (Typ.) | 1.238W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SHLP-06V-S-B | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-AAACCC | |
