Product Details:
|
| Size: | 12.1 Inch | Resolution: | 1280*800 |
|---|---|---|---|
| Luminance: | 450 Cd/m² (Typ.) | View Direction: | Symmetry |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Support Color: | 16.7M 40% NTSC |
| Interface Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | WLED Backlight TFT LCD Display,Portrait Tianma TFT,Tianma TFT LCD Panel |
||
1. Main Information:

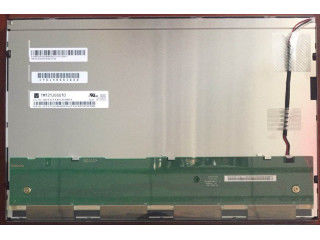

TM121JDSG10 is a 12.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C . It's general features are following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM121JDSG10 Mechanical Details:
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | 262.12×164.2 mm (H×V) |
| Outline Dim. | 278×184 mm (H×V) | Outline Depth | 9.9/10.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 440g (Typ.) | Surface |
Antiglare |
3. TIANMA TM121JDSG10 Optical Details:
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 12/13 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.316; Wy:0.350 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6200K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 55% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM121JDSG10 Interface Details:
| Signal Systerm | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 660mA (Typ.) | ||
| Consumption | 2.18W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 093G30-B0001A-G4 | 1.0 mm | 30 pins | 1 pcs | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
