Product Details:
|
| Size: | 15 Inch | Resolution: | 1024*768 |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Support Color: | 262K/16.7M 60% NTSC |
| Interface Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Contrast Ratio: | 600 : 1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | WLED Backlight TFT LCD Display,Portrait Tianma TFT,Tianma TFT LCD Panel |
||
1. Main Information:

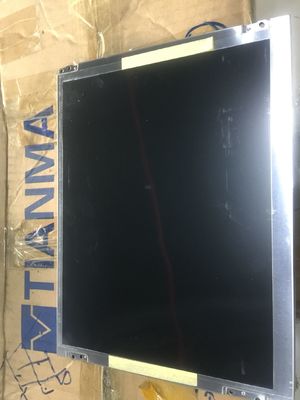

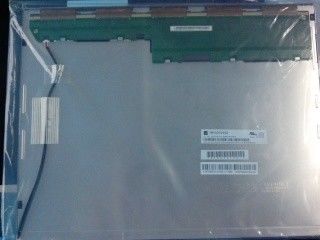

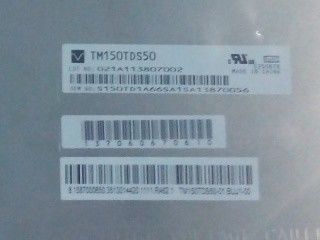

The TM150TDS50 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM150TDS50 Mechanical Features:
| Screen Size | 15 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | 307.4×231.3 mm | 326.5×253.5 mm | 11.8±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.00Kgs (Typ.) | - | Antiglare | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
3. TIANMA TM150TDS50 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 80/80/80/80 (Typ.)(CR≥10) | 8 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 80% | 62% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : |
1.25/1.33 (Typ./Max.)(9 points) |
||
4. TIANMA TM150TDS50 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 50K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSB24038P5 | 1 pcs | 5 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 480/650mA (Typ./Max.) | |||||
