Product Details:
|
| Size: | 10.4 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Support Color: | 262K/16.2M 50% NTSC |
| Interface Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C |
| High Light: | WLED Backlight TFT LCD Display,Portrait Tianma TFT,Tianma TFT LCD Panel |
||
1. Main Information:

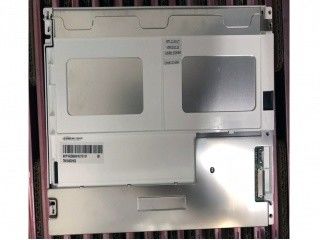

TM104SDH03 is a 10.4" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 85°C .
It's general features are following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features, this model be applied to Industrial etc.
2. TIANMA TM104SDH03 Mechanical Features:
| Panel Size : | 10.4 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 214.8×161.8 mm | 243×179.4 mm | 8.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - | |
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 433g (Typ.) | Antiglare, Hard coating (3H) | ||
3. TIANMA TM104SDH03 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6760K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.305; Y:0.345 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 67% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM104SDH03 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 5S8P | 50K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F05N-03R | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.2A (Typ.) | 12/14.25/16.5V (Min./Typ./Max.) | 2.85W (Typ.) | ||||
